Yongte is an efficient pipe manufacturer specializing in the production of PVC conduit pipes extrusion line. Using advanced technology, two PVC pipes of specified specifications can be extruded simultaneously. It is equipped with precision mold and intelligent control system to ensure accurate product size and stable quality. Efficient cooling and traction devices make the production process smooth. The production line improves the efficiency and reduces the cost, and is widely used in construction, agriculture and other fields to meet the market demand for high-quality small-caliber PVC pipes.
Yongte PVC pipe extrusion line is specially designed for the production of PVC pipe with an outer diameter between 16-50mm, using advanced one-out two-twin screw extrusion technology to produce high quality PVC pipe efficiently and stably. The mold is accurate, and two pipes can be extruded at the same time, greatly improving efficiency. Excellent styling and cooling system ensures accurate tube size and stable performance. Traction and cutting devices operate accurately, and the control system is intelligent and convenient. The production line is energy saving and environmental protection, excellent product quality, is an ideal choice for PVC pipe production, widely used in construction, agriculture and other fields.
First, the PVC raw materials and various additives are fed into the hopper of the extruder through the automatic feeding system.
Inside the extruder, two conical twin screws that mesh with each other rotate under the drive of a motor. The rotation of the screw pushes the material forward, and at the same time, because the gap between the screw edge and the barrel gradually becomes smaller, the material is subjected to strong extrusion and shear, which is heated and plasticized.
The plasticized material is pushed into the mold by the screw. The special design of the mold allows the material to be split and form two 16-50mm pipe shapes at the outlet.
Then, through the vacuum setting device, the vacuum adsorption force is used to make the tube quickly fit the mold cavity, so as to accurately set the mold.
Then, in a cooling tank, the tube is quickly cooled to fix its shape and size.
Finally, through the traction device to pull the pipe forward at a constant speed, and through the cutting device to cut according to the set length, to complete the entire production process.
1. Efficient production
The two out of one design doubles production efficiency and produces more tubing in the same amount of time.
The powerful plasticizing and extrusion capabilities of the twin-screw extruder shorten the production cycle.
2. High product quality
The good mixing and plasticizing effect of the twin screw ensures uniform material and stable performance of the pipe.
The precise mold and setting device ensure high dimensional accuracy, good roundness and smooth appearance of the pipe.
3. Save costs
The higher production efficiency reduces the production cost per unit of product.
The relatively stable production process reduces the scrap rate and saves raw materials.
4. You're adaptable
It can adapt to a variety of PVC raw material formulations and meet different performance requirements of pipe production.
The production parameters can be flexibly adjusted to produce pipes of different specifications (16-50mm).
5. Easy to operate
The intelligent control system makes the operation more simple and intuitive, and it is easy for workers to master and monitor the production process.
6. Easy maintenance
The reasonable structure design makes the maintenance and maintenance of the equipment easier, reducing the maintenance cost and downtime.

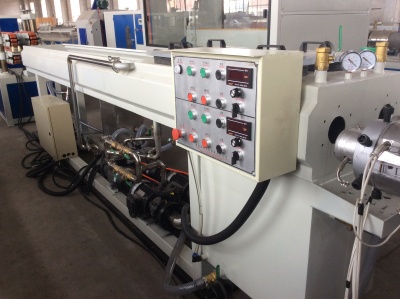

Twin-screw extruder: It has two screws that work together for efficient plasticizing and even mixing.

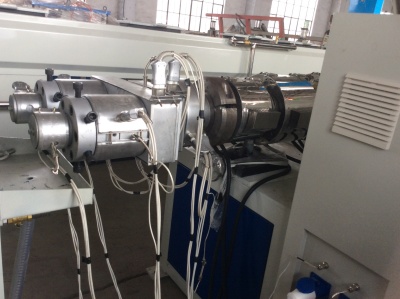

One out of two mold: it can form two pipes at the same time in a single extrusion, greatly improving production efficiency. The mold is well designed to ensure accurate tube size, uniform quality and smooth surface.

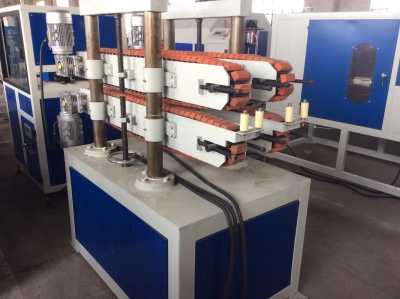

Traction system: two pipes can be pulled simultaneously. It is composed of motors, traction wheels, etc., and provides stable and uniform traction force through precise control. It is an important part of pipe production to ensure the synchronous and uniform movement of two pipes, prevent stretching deformation, ensure dimensional accuracy and quality, and improve production efficiency.
The 16-50mm PVC pipe produced by Yongte PVC conduit pipes extrusion line is widely used. It is often used in the water supply and drainage system of buildings to ensure smooth water flow and no leakage. Efficient water transfer in agricultural irrigation. It is also suitable for electrical wiring protection to provide safety protection for wires. Meet the needs of a variety of scenarios, reliable quality.
