Yonte is a manufacturer of high quality PVC pipe. Yongte 16-50mm PVC pipe equipment is a kind of equipment for the production of PVC pipe, usually including mixing machine, extruder, cutting machine, cooling water tank, sizing machine, tractor and coiler and other parts.
Yongte is professional manufacturer for PVC pipe equipment, our 16-50mm PVC pipe equipment is mainly used for the production of cable conduit. The main materials of cable conduit are PVC, aluminum alloy, galvanized iron sheet and so on. The cable conduit of different materials has different characteristics, such as the cable conduit of PVC material has good flame retardant, and the cable conduit of aluminum alloy has high strength and good pressure resistance. The use also needs to be classified according to different occasions, mainly open, sealed and shielded.

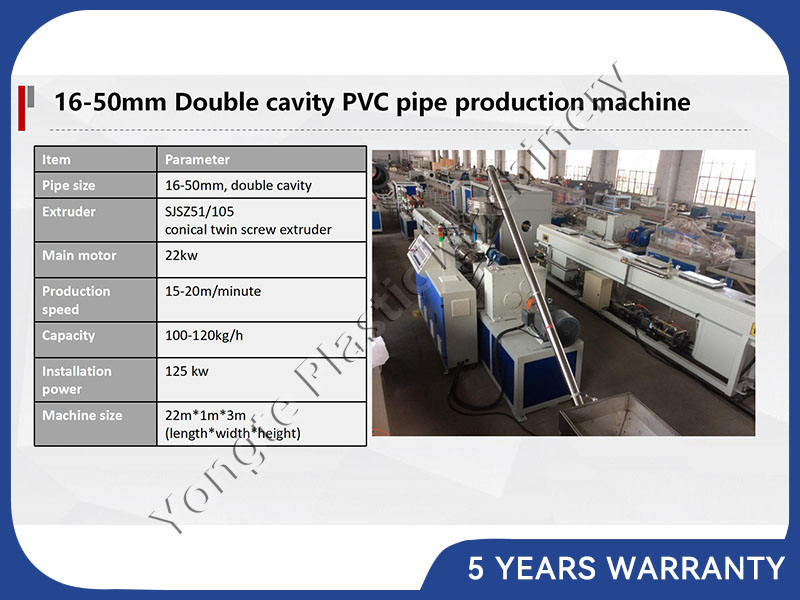

| Item | parameter |
| Pipe size | 16-50mm, double cavity |
| Extruder | SJSZ51/105 conical twin screw extruder |
| Main motor | 22kw |
| Production speed | 15-20m/minute |
| Capacity | 100-120kg/h |
|
Installation power |
125kw |
| Machine size | 22m*1m*3m(length*width*height) |
1. Mixing machine: Mix PVC pellets, stabilizers, lubricants, plasticizers and other materials evenly.
2. Extruder: The equipment for extrusion molding after heating and melting the mixed material.
3. Cutting machine: used to accurately cut the extruded PVC pipe according to the required length.
4. Cooling tank: Cooling tank is usually equipped with cooling water circulation system, the heat deformation, hair color PVC pipe through the cooling tank can achieve the ideal shape, size and appearance.
5. Sizing machine: used to control the size of the outer diameter and inner diameter of the product to ensure the accurate size of the pipeline.
6. Tractor: The tractor system is used to straighten and adjust the speed of the PVC pipe to ensure the roundness and length accuracy of the pipe.
7 Coiler: It is used to wind the finished PVC pipe from the extruder for easy preservation and transportation.
1.Construction field: PVC pipes are widely used in urban water supply, drainage, rainwater drainage, ventilation, exhaust, etc., and are also used in household water supply and drainage systems, such as mezzanine drains, toilet drains, ventilation pipes, moisture-proof isolation layers, etc.
2.Agriculture: PVC pipes are widely used in agricultural irrigation systems, and are also used in drainage systems and waste water discharge systems for livestock farms.
3.Communication field: PVC sleeve provides protection pipe for maintenance cable communication system, which has insulation and waterproof and moisture-proof performance, and can also be used as cable protection pipe in home wiring system.
4.Municipal engineering: PVC pipes can be used in urban drainage and water supply systems, such as domestic drainage pipes, drainage pipes, rainwater collection pipes, internal ventilation pipes, septic tanks, submerged pipes, etc.
5.In the field of chemical industry: PVC pipes are widely used in chemical manufacturing and storage pipeline systems, such as acid and alkali wastewater pipes, liquid chlorine transportation pipes, chemical storage and transportation pipelines.

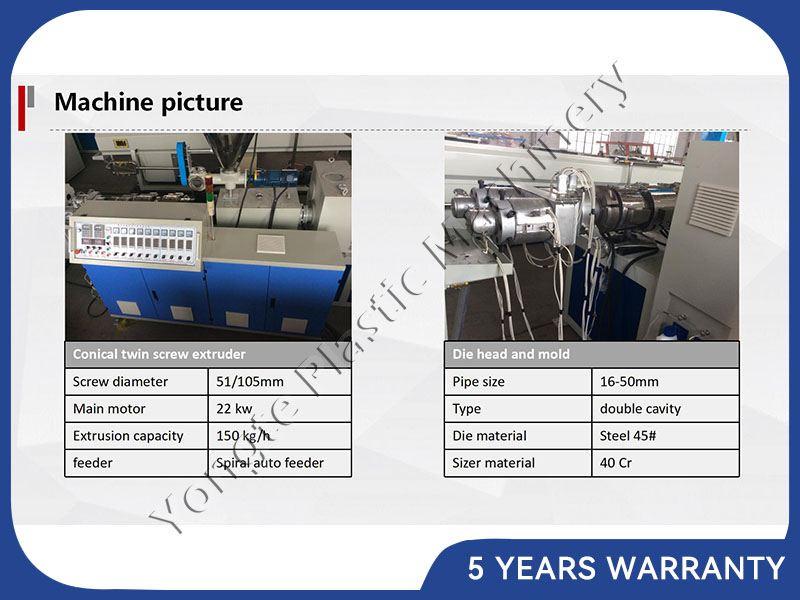

Yongte PVC pipe extruder adopts high effective Conical twin screw extruder, it equip with spiral screw auto feeder, automatic temperature control system, Aluminum heater, cooling fan, and driving system. The main function of the PVC pipe extruder is to produce high-quality PVC pipes. Its characteristics include high production efficiency, stable product quality, easy operation and maintenance. Visual highlights may include modern design, high-quality materials and workmanship. Technology highlights may include advanced control systems, efficient heating systems and precise extrusion technology.

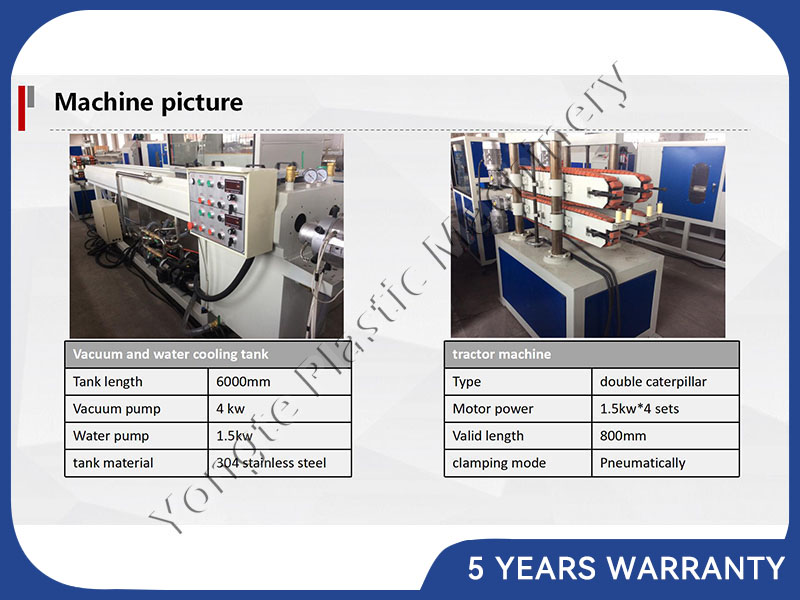

Yongte vacuum and water-cooled water tank is one of the common equipment in the plastic processing line, mainly used for the cooling and setting of plastic products in the plastic extrusion industry. Specifically, vacuum and water-cooled water tanks usually include one or more tanks in which cooling water is injected and air is discharged through a vacuum pump or other means, so that plastic products can maintain a certain shape and size during cooling and setting.

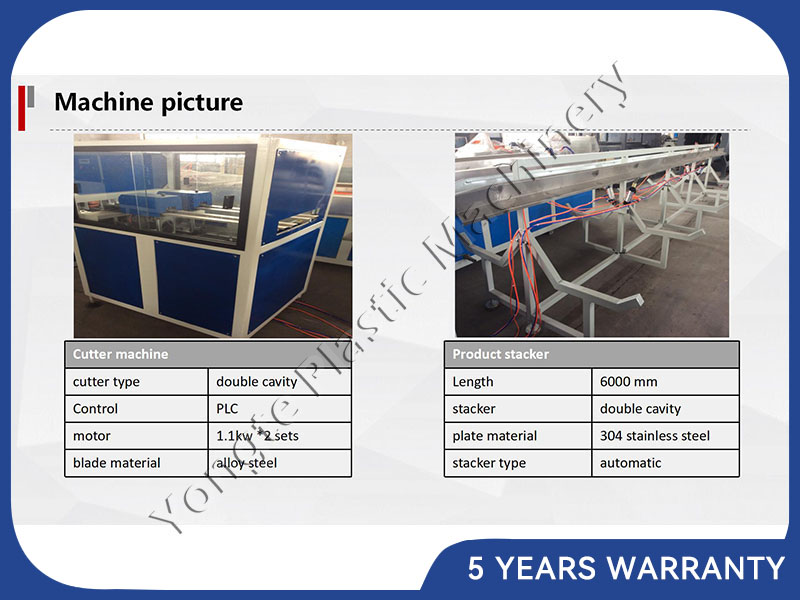

1. High efficiency: Yongte PVC pipe cutter uses a high-speed rotating blade to quickly cut off PVC pipes, which is faster and more labor-saving than traditional manual cutting methods.
2. High precision: Yongte Cutter is equipped with professional positioning devices and cutting guide rails to ensure accurate cutting and smooth, smooth pipe cuts.
3. Easy to operate: Yongte PVC pipe cutter is designed to be user-friendly and easy to operate. Workers only need to place the PVC pipe on the machine, adjust the cutting length, and complete the cutting with one click.
4. Safe and reliable: Yongte PVC pipe cutter is equipped with safety protection devices to ensure safety during operation. At the same time, the machine runs smoothly, has low noise, and will not cause interference to the working environment.

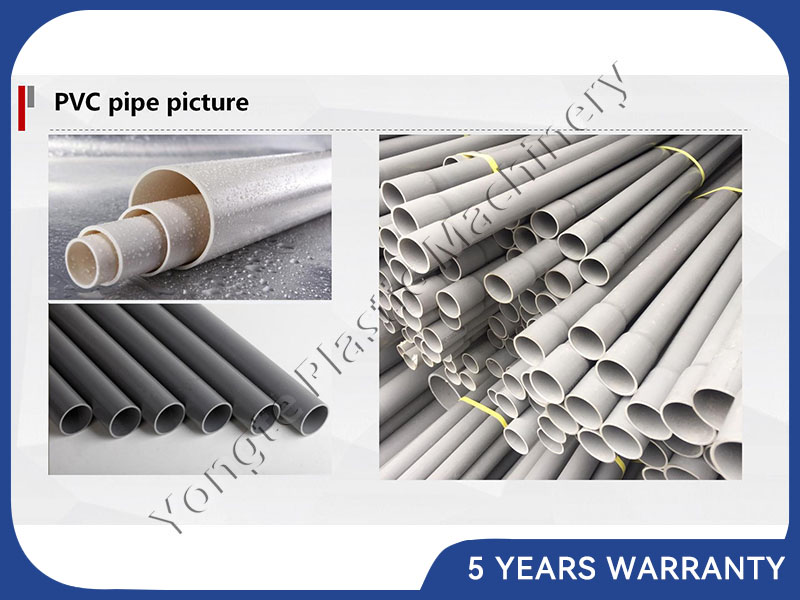

16-50mm PVC pipe is mainly used in construction, drainage, ventilation, chemical, agricultural irrigation and other fields, is a low-cost, extremely durable plastic pipe. It is characterized by strong pressure resistance, wear resistance, corrosion resistance and other properties, and the production process is simple, low production cost, so it is widely used in construction, agriculture, medical equipment, tap water, liquid transportation and other fields.
16-50mm PVC pipes can be used in the following applications:
Building water and drainage systems.
Chemical drainage, waste liquid, electrolytic material conveying pipeline.
Agricultural sprinkler irrigation, drainage, water conservancy project pipeline.
Medical equipment transportation, discharge, etc.
In addition, PVC pipe also has the functions of fire prevention, insulation, sound insulation and UV resistance, so it is also often used as building materials, such as ventilation pipes, insulation pipes, chimneys and so on. In short, 16-50mm PVC pipe is widely used in various industries due to its various excellent properties and wide range of uses, and has become an indispensable pipeline conveying material in the construction and production process.
