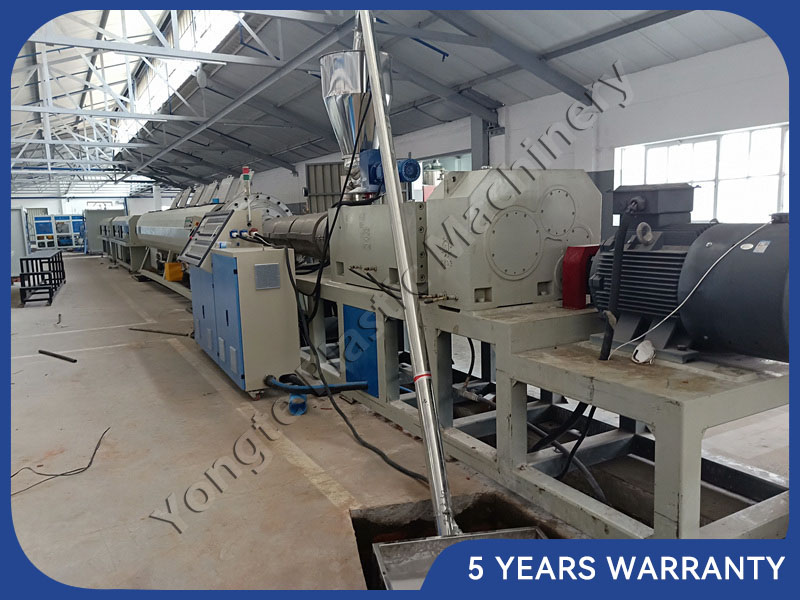

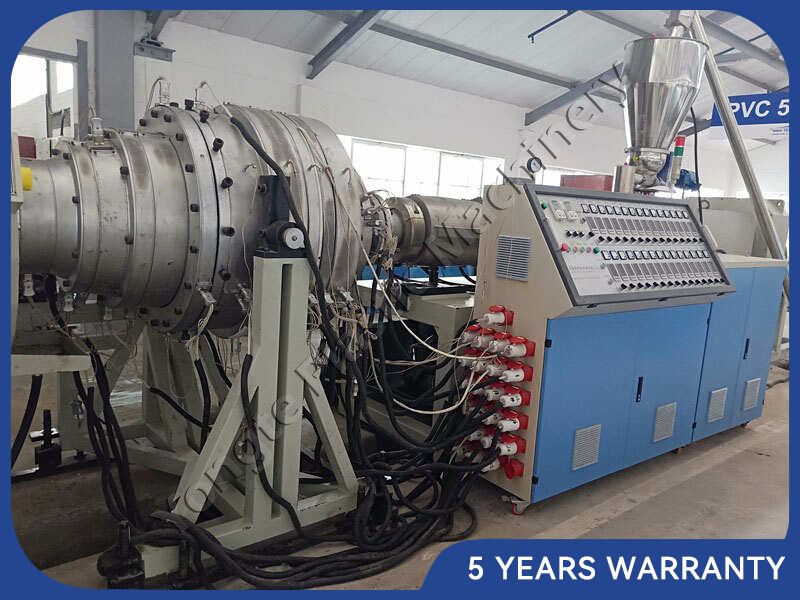

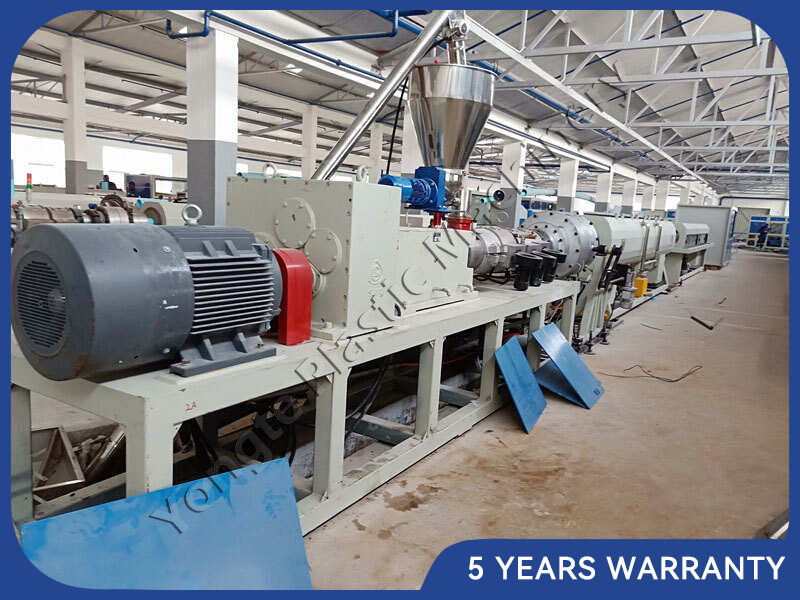

The 160-315mm PVC pipe extrusion machine line is used for making PVC water pipe, it includes auto feeder, conical double screw PVC extruder, die and mold, vacuum and water cooling tank, pull off tractor, and cutting machine
160-315mm PVC pipe extrusion machine is a device used for the production of PVC pipes. PVC Pipe is a kind of pipe material widely used in construction, water conservancy, power and other fields, because of its excellent corrosion resistance, wear resistance and high pressure resistance performance is favored. PVC Tube extrusion line is the key production machine to process PVC resin powder into PVC pipeline through heating, plasticizing, extrusion and other processes.
Preparation of raw materials + additives → mixing → conveying and loading → forced feeding → conical twin-screw extruder → extrusion mold → sizing sleeve → spray vacuum shaping box → crawler tractor → cutting machine → pipe stacking rack → finished product Test packaging.
Feeder → Mixer → Feeder → Extruder → Mold → Vacuum tank → Traction → Printer → Cutting → Curling
| Model | YT-50 | YT-110 | YT-160 | YT-250 | YT-400 | YT-630 |
| extruder | SJZ45 | SJZ55 | SJZ65 | SJZ65 | SJZ80 | SJZ92 |
| Pipe diameter range | 16-40 | 50-110 | 63-160 | 110-250 | 200-400 | 315-630 |
| Vacuum tank(mm) | 5000 | 5000 | 5000 | 6000 | 6000 | 6000 |
| Cutting machine (m/min) | 3-12 | 2-8 | 2-8 | 0.4-3 | 0.2-4 | 0.4-3 |
| Total power (kw) | 66 | 62 | 89 | 95 | 135 | 255 |
| Total length(mm) | 17000 | 18000 | 20000 | 20500 | 28000 | 30000 |
| Pipe specification | Extruder output | kg/h | Remarks |
| 20-63 | 51/105 | 80-120 | 20、25、32、40、50、63 |
| 75-160 | 65/132 | 150-250 | 75、90、110、125、140、160 |
| 160-315 | 80/156 | 250-350 | 160、180、200、225、250、280、315 |
| 315-630 | 92/188 | 600-750 | 315、355、400、450、500、560、630 |

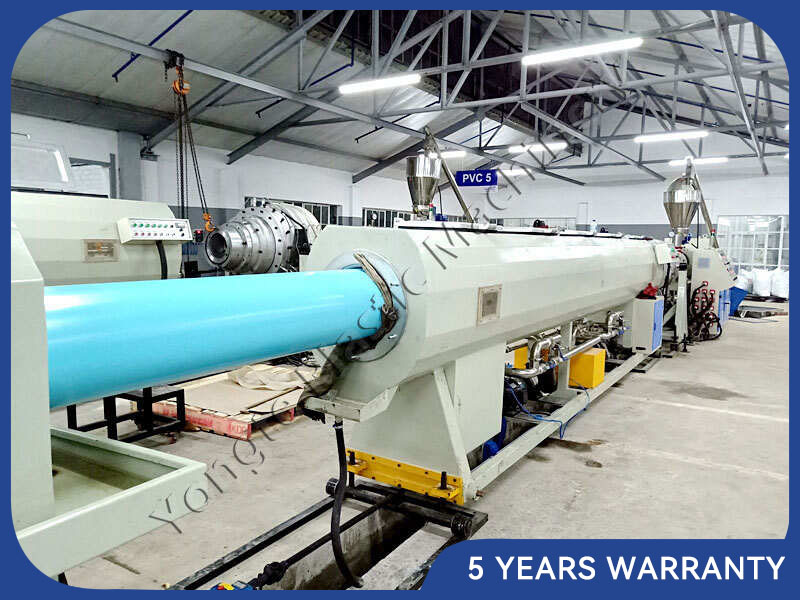

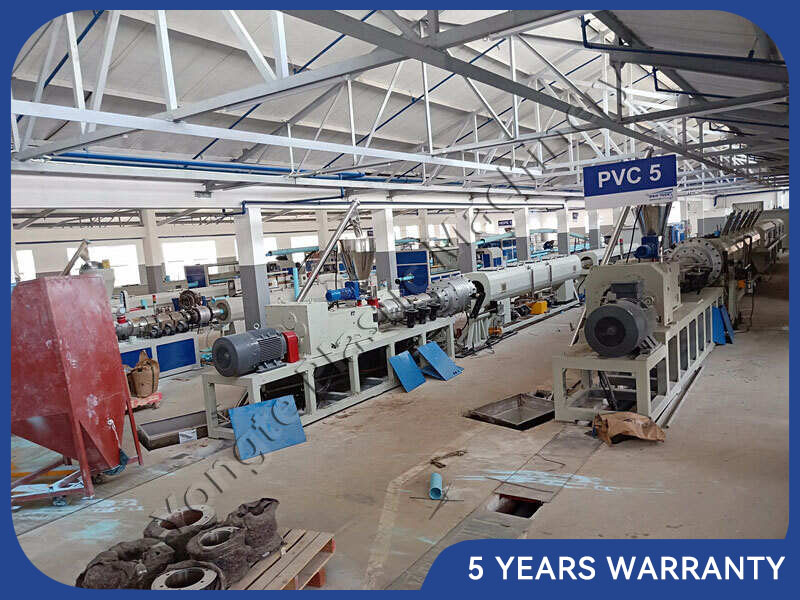

The PVC pipe extrusion line includes auto feeder, conical double screw PVC extruder, die and mold, vacuum and water cooling tank, pull off tractor, and cutting machine
Good quality: The use of high-quality materials and advanced technology to ensure stable and reliable equipment performance.
Good service: Provide comprehensive pre-sale, sale and after-sales service to solve user problems.
Stable production: stable operation of equipment to ensure production efficiency.
Mature formula: The use of mature formula to ensure product quality.
Advanced technology: the use of cutting-edge technology to improve production efficiency and product quality.
Low maintenance cost: The equipment is easy to maintain, reducing the cost of use.
Long service life: the equipment is durable, long service life.
High efficiency: equipment processing speed is fast, improve production efficiency.
Energy saving: Use energy-saving technology to reduce energy consumption.
Environmental protection: environmentally friendly and pollution-free, in line with green production requirements.
Turnkey engineering: Provide one-stop service, from equipment installation to production training, so that users can easily get started.
