Yongte PVC skirt panel making machine equip with conical twin screw extruder for high effective production.we supply high quality machine with good customer service.
PVC baseboard production machine is an industrial equipment specially used to produce PVC baseboards. Yongte is professional manufacturer for the PVC baseboard making machine, Yongte supply high quality machine with factory price, and we supply good customer service.
PVC skirt panel making machine mainly works based on the extrusion molding principle. This equipment heats the PVC raw material to a molten state through a PVC extrusion machine, and then plasticizes the molten PVC through an extrusion mold and shapes it into a skirting line of a specific shape. During the extrusion process, the equipment is also equipped with a cooling device to ensure that the skirting can be quickly cooled and shaped after leaving the mold to maintain a stable shape and size.
1. High efficiency and energy saving: Yongte PVC skirt panel making machine is using advanced heating and cooling technology to reduce energy consumption and improve production efficiency.
2. Easy to operate: Yongte PVC skirt panel making machine adopts an intelligent control system, which is simple and convenient to operate and can realize automated production.
3. Stable quality: By accurately controlling parameters such as raw material ratio, temperature and pressure, the quality of the skirting boards is ensured to be stable and reliable.
4. Strong adaptability: Yongte PVC skirt panel making machine can change the mold and parameters according to different needs to produce skirting lines of different shapes, sizes and colors.
1. Raw material mixing machine: it is used for mixing PVC raw materials with chemical additives. it combines a hot mixer and a cold mixer. we will supply experienced formula to customer for make high quality PVC baseboard product with low cost.
2. Raw material conveying system: Responsible for conveying PVC raw materials to the extruder to ensure the continuity and stability of the production process.

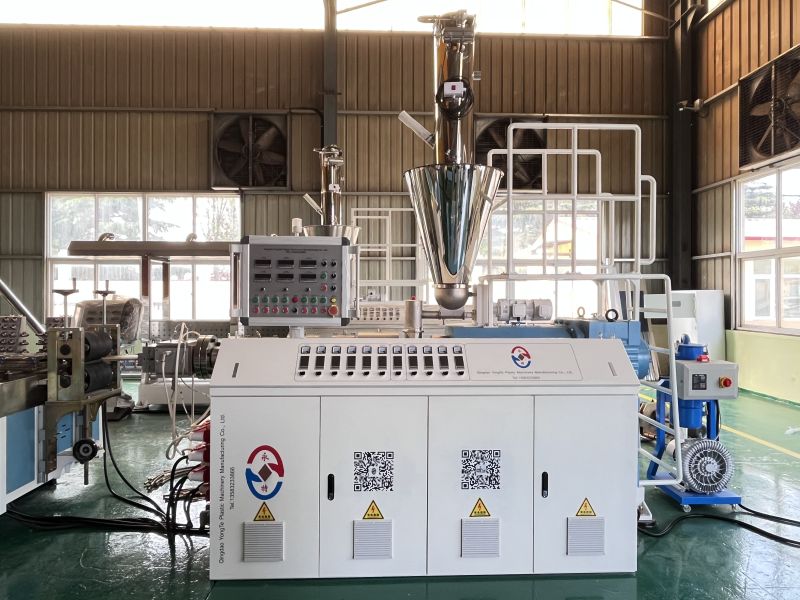

3. Extruder: The core component is responsible for heating, melting and extruding raw materials into shape. The performance of the extruder directly affects the quality and production efficiency of the skirting board. it uses conical twin screw extruder for high effective extrusion.
4. PVC baseboard extrusion Mold: it is the key component, which determines the shape and size of the skirting line. The design of the mold needs to take into account the product's performance requirements and production costs. Yongte supply high speed mold which can ensure both product quality and production speed.

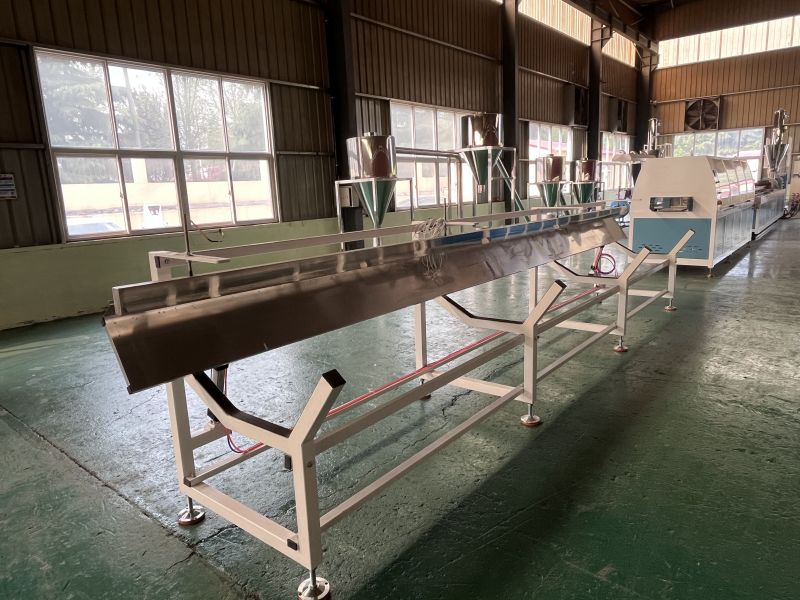

5. Cooling and calibration device: 6 meter length with fast water cooling and high speed vacuum forming, ensure that the skirting board can be quickly cooled and shaped after leaving the mold to prevent deformation or size deviation.

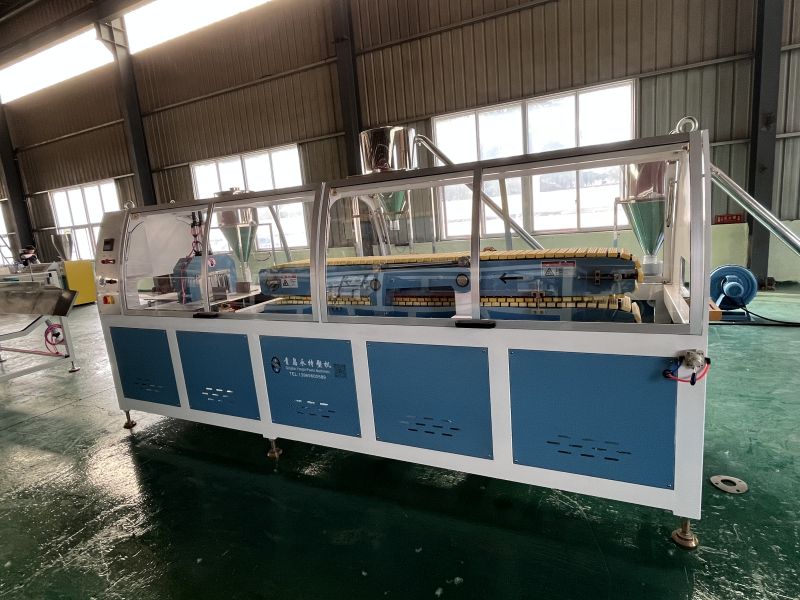

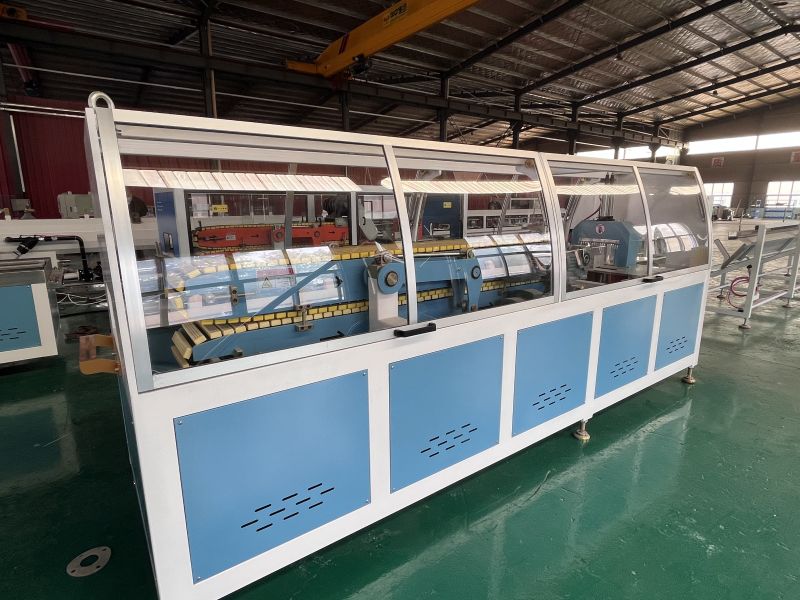

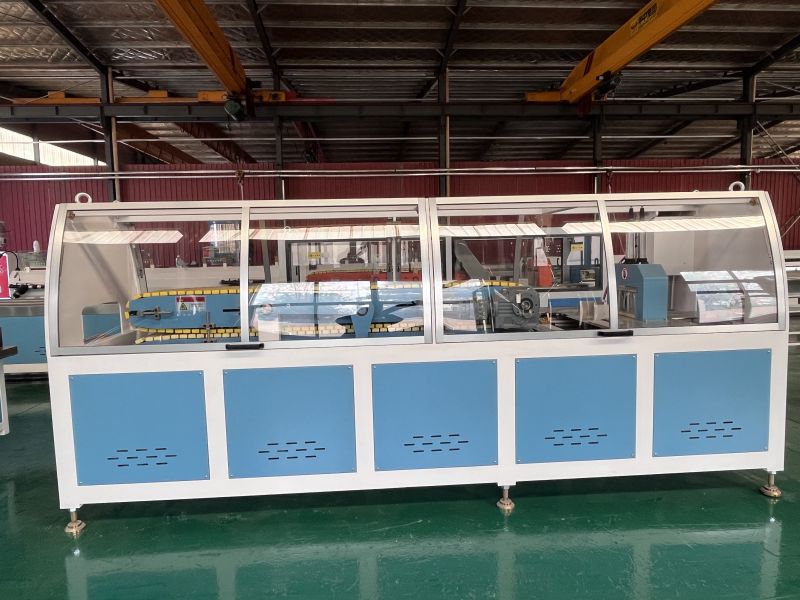

6. traction and Cutting and device: 2.4m double caterpillar traction machine and automatic cutting machine, cut the cooled and shaped skirting according to the preset length.
7. lamination machine: laminate decoration film on the PVC baseboard surface. PUR lamination is good for better quality
PVC skirt panel are widely used in daily life. In home decoration, skirting can not only beautify the wall, but also protect the wall from collision and friction. In public places such as shopping malls and hotels, skirting lines also play an important role, improving the overall decorative effect. In addition, PVC skirting also has good moisture-proof and mildew-proof properties, and is suitable for humid environments, such as bathrooms, kitchens and other areas.
