Yongte is professional manufacturer factory for PVC Window profile extrusion machine,pvc window and door profile has been widely used in the construction industry,our PVC window and door profile extrusion machine has advantage of high capacity, low power consumption, enviroment-friendly, high automation.

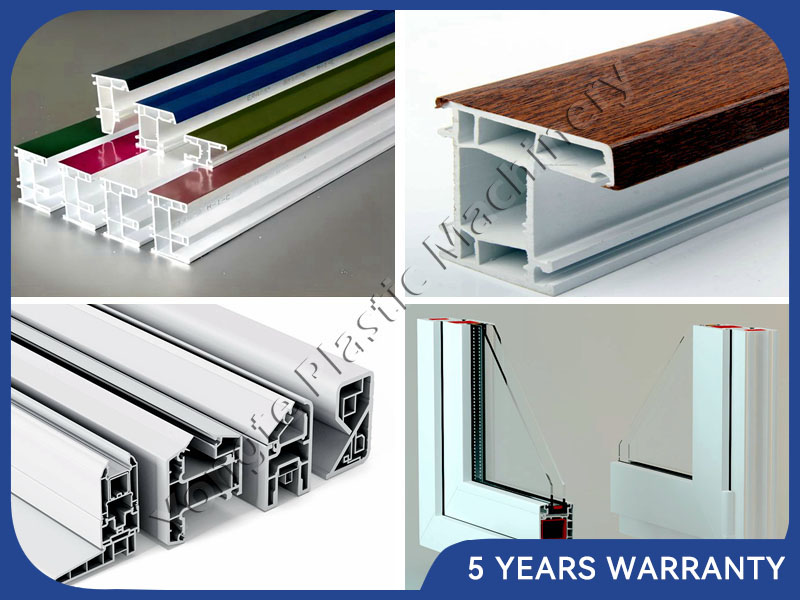

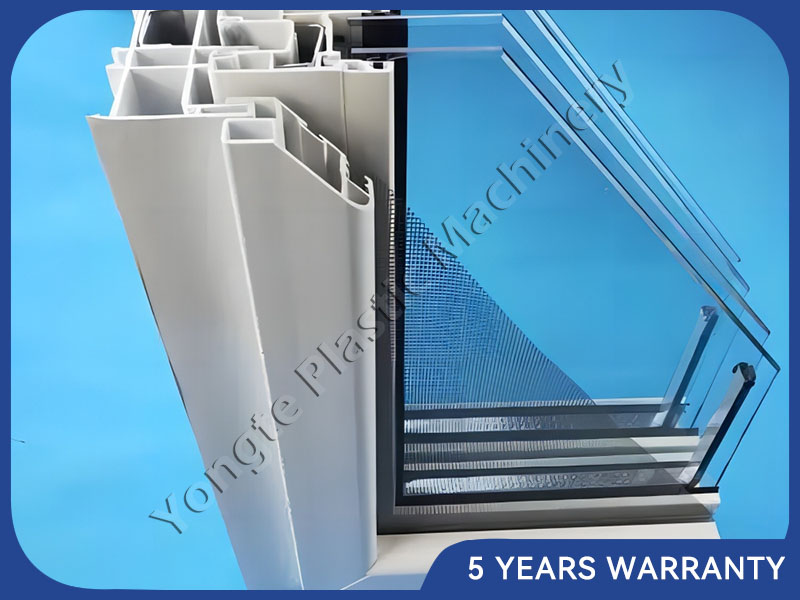

PVC window and door profile extrusion machine is a kind of specialized production of PVC window profile and door profile production machine. PVC Window and door profile is a kind of plastic window profile made of polyvinyl chloride (PVC) as the main raw material, with excellent thermal insulation, heat insulation, sound insulation, corrosion resistance and other properties, so it has been widely used in the construction industry.

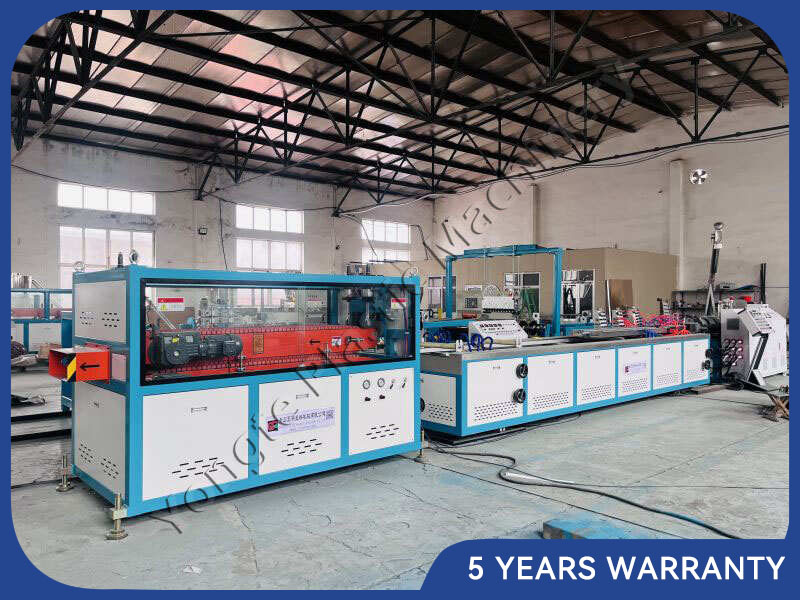

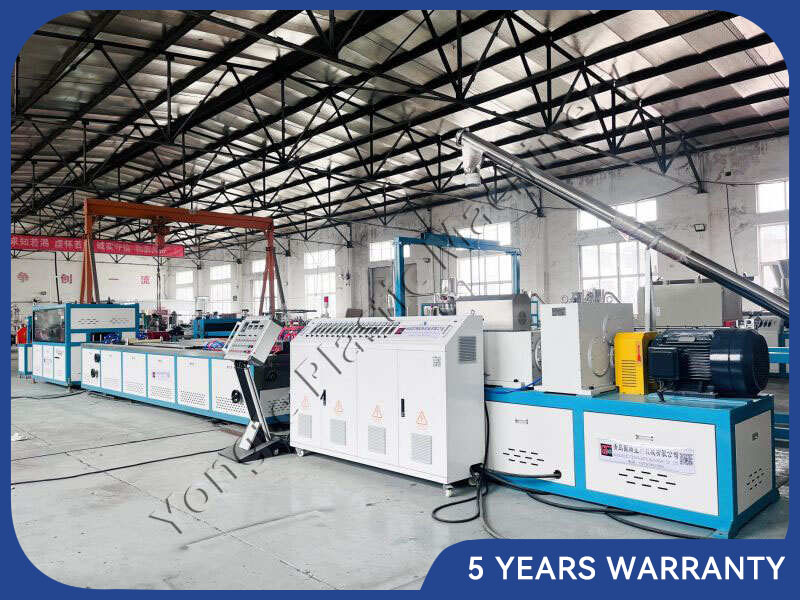

PVC window and door profile extrusion machine is mainly composed of mixing machine,PVC extruder, window profile mold, tractor, cutting machine, etc. The extruder machine is used for extrusion PVC raw materials after heating and the material will be pushed into the window profile mold; the mold design and manufacturing influence the quality and dimensional accuracy of the extruded profiles to ensure the straightness and stability of the profiles, and the cutting machine cuts the pulled profiles according to the preset length to form the finished product.
|
Item |
Equipment |
Note |
|
1 |
Mixing machine |
Hot and cold mixer, for mixing PVC,CaCo3 and chemical additives |
|
2 |
Auto feeder |
Spiral screw feeder, |
|
3 |
SJSZ65/132 extruder |
Conical double screw extruder, equip with bimetallic screw and SKD barrel |
|
4 |
Die and mold |
Special designed for pvc window profile extrusion, high speed vacuum calibration |
|
5 |
Cooling and calibration machine |
Water cooling and vacuum calibration |
|
6 |
Pull off tractor machine |
Double caterpillar type, high force tractor made by high quality rubber caterpillar |
|
7 |
Auto cutter machine |
Fixed-length automatic cutting, |
|
8 |
Product stacker |
Automatic stacker made by stainless steel |
|
9 |
Electricity control system |
Auto temperature controller is Omron brand, motor equip with ABB brand inverter, PLC touch screen controller is Siemens brand.. |
1. High degree of automation: PVC window and door profile extrusion machine adopts PLC control system, to achieve automatic production, greatly improve the production efficiency.
2. High production efficiency: due to the use of advanced production technology and production machine, the production efficiency of PVC window and door profile extrusion machine is very high, which can meet the needs of mass production.
3. Stable product quality: PVC window and door profile extrusion machine production process and production machine are very mature, can ensure the production of stable product quality, high dimensional precision.
4. Environmental protection and energy saving: PVC window and door profile is a kind of environmental protection material, the production process will not produce harmful substances, at the same time, the extrusion machine also uses a number of energy-saving measures, to achieve green production.
PVC window and door profile extrusion machine has been widely used in the construction industry, mainly used for the production of various types of PVC Windows, such as Windows, push and pull Windows, folding Windows, etc. At the same time, with people's higher requirements for environmental protection and energy saving, the application of PVC window profile will be more and more extensive.
