Yongte is a manufacturer of high-quality plastic Pipe production machine in China. Its production of plastic Pipe production machine show a strong production capacity, the scope of application is very wide. Whether it is common PVC pipe, PE pipe or PP pipe, it can be efficiently manufactured by this equipment. The external diameter of the pipe produced by the equipment ranges from 16 to 650MM, which can meet the diversified market needs.
Yongte is a professional manufacturer of plastic pipe making machine equipment in China. Its plastic pipe making machine has a strong production capacity, can be widely used in the manufacture of a variety of pipes, common such as PVC pipe, PE pipe and PP pipe are in its column. The outer diameter of the pipes produced ranges from 16 to 650MM.
With its excellent performance and precise process control, the plastic pipe making machine is fully capable of efficiently producing high-quality PVC pipes. Because of its good corrosion resistance and low cost, PVC pipe has been widely used in construction drainage, wire and cable protection and other fields.
At the same time, the plastic pipe making machine can also produce PE pipes with excellent performance in a stable and accurate manner. PE pipe has excellent flexibility and impact resistance, and is widely used in urban gas transmission, water supply and drainage pipes and other important fields.
In addition, the plastic pipe making machine can also produce excellent PP tubes. PP pipe has good high temperature resistance and chemical stability, and is often used in chemical pipelines, hot water supply systems and other occasions with high requirements for pipe performance.
1. Feeder
Its function is to transport the material to the extruder.

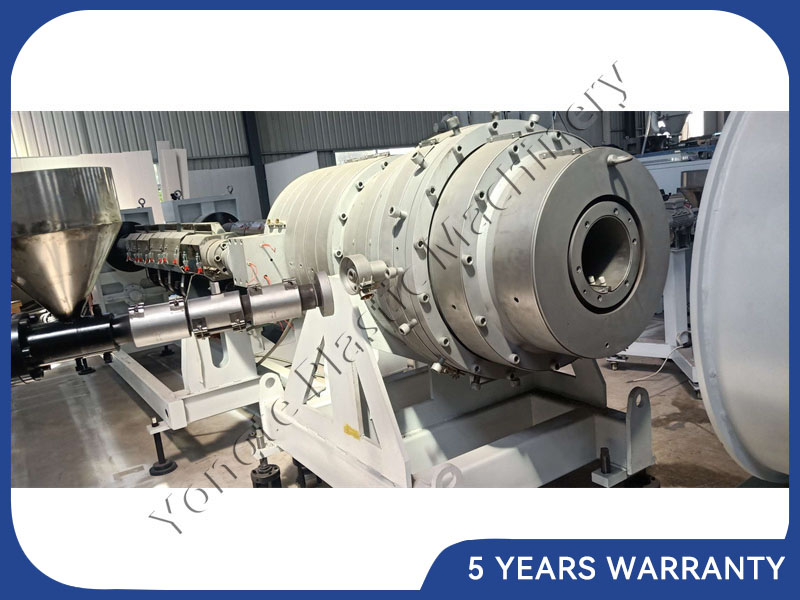

2. Conical twin screw extruder or reverse rotating parallel twin screw extruder
This is the most critical part of the entire extrusion line, and the service life of the extrusion line largely depends on the quality of the extruder. In general, when making PVC pipe, people often use conical twin-screw extruders. However, there are also many people interested in parallel twin-screw extruders, because of its high capacity and low consumption advantages.
3. Mold (die head)
This is the core of the pipe extrusion line, and the quality of the pipe is largely determined by the quality of the mold.
4. Vacuum sizing cooling tank
High-quality vacuum sizing cooling tanks can give the pipe a beautiful appearance, manufacturing large diameter pipes often require multiple sets of vacuum sizing cooling tanks.
5. Water cooling tank
The pipe coming out of the mold is in a high temperature state, even after the cooling of the vacuum sizing cooling tank, the pipe is still hot, so the water cooling tank is needed to further cool the pipe. Generally speaking, the larger the diameter of the pipe, the longer the length of the water cooling tank.
6. Traction cutting machine
The traction cutting machine is a device that drives the pipe forward to a certain position for automatic cutting.
7. Stackers
Used to collect pipes.
1. High dimensional accuracy
The outer diameter, inner diameter and wall thickness of the pipe are uniform and meet the strict standard requirements. This allows the pipe to better match the connector during installation and use, reducing the risk of leakage and failure.
For example, in building water supply and drainage systems, precisely sized pipes ensure smooth water flow and well-sealed joints.
2. Excellent physical properties
It has good compressive strength and impact resistance, and can withstand a certain external force and pressure without cracking or deformation.
For example, plastic pipes laid underground need to have sufficient compressive capacity to withstand the pressure of the soil and the load of ground traffic.
3.Good chemical stability
It can resist the erosion of chemical substances and is not easy to be corroded by acid, alkali, salt, etc., thus extending the service life of the pipe.
For pipes transporting chemical media, such as plastic pipes in the chemical industry, chemical stability is critical.
4. Good surface quality
The surface of the pipe is smooth and flat, without obvious defects, bubbles, cracks and so on. This is not only conducive to fluid transportation, but also improves the appearance quality of the pipe.
The smooth surface also reduces the adhesion of dirt and impurities, making it easy to clean and maintain.
5.Reliable connection performance
The port of the pipe is smooth, easy to be hot melt, adhesive or mechanical connection, and the connection part is sealed well to ensure the integrity of the pipeline system.
In piping systems, reliable connections can avoid leakage and leakage problems.
6. Good hygiene performance
For pipes used in drinking water transportation and other fields, they meet health standards and will not cause pollution to the conveying medium.
To ensure people's health and safety.

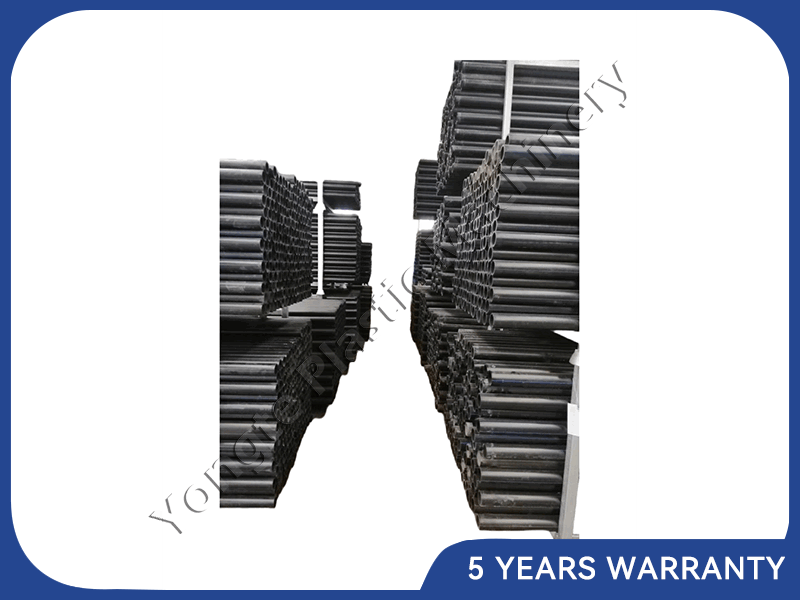

At present, China's municipal pipe market, plastic pipe is developing steadily, PE pipe, PP-R pipe, UPVC pipe have a place, of which PE pipe strong development momentum is the most remarkable. PE pipe production machine are used in a wide range of fields. Water supply pipe and gas pipe are its two largest application markets.
