Yongte is specialized in the production of PE water supply pipe production line manufacturers, PE water pipe with machinery and equipment including extruder, mold, straightening machine, cutting machine, cooling water tank and so on. These devices can be configured and combined differently depending on production requirements and the size of the production line. Through the operation of the PE water pipe production line, the precise control of the detailed data and quality requirements can be achieved, to ensure the quality of the production of PE water pipes, and to understand the profit space, which helps the production enterprise to operate efficiently.
The PE (polyethylene) water supply pipe production line is a combination of production machine specially used for the production of polyethylene water supply pipeline. With the development of modern urban construction, PE pipe has been widely used in the field of water supply because of its excellent corrosion resistance, high pressure resistance, good environmental performance and low maintenance cost.
Model
16-63mm
20-110mm
75-250mm
110-315mm
315-630mm
PE pipe extruder
SJ65/33 single screw extruder
SJ75/33 single screw extruder
SJ90/33 single screw extruder
SJ90/33 single screw extruder
SJ120/33 single screw extruder
PE pipe mold
16-63mm
20-110mm
75-250mm
110-315mm
315-630mm
Extrusion capacity
120-150 kg/h
160-180 kg/h
250-300 kg/h
300-350 kg/h
400-500 kg/h

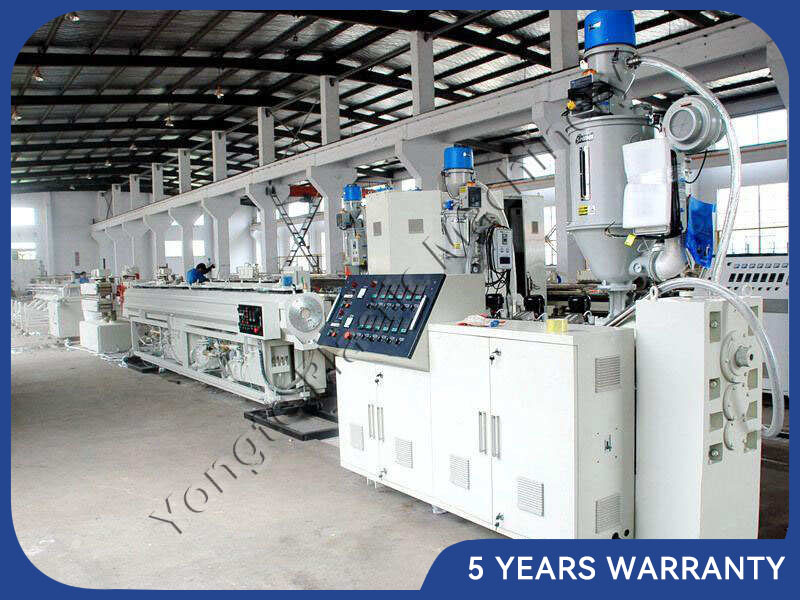

The PE water supply pipe production line mainly consists of the following parts:
1. Raw material storage and delivery system: It is responsible for transporting PE raw material to the production line.

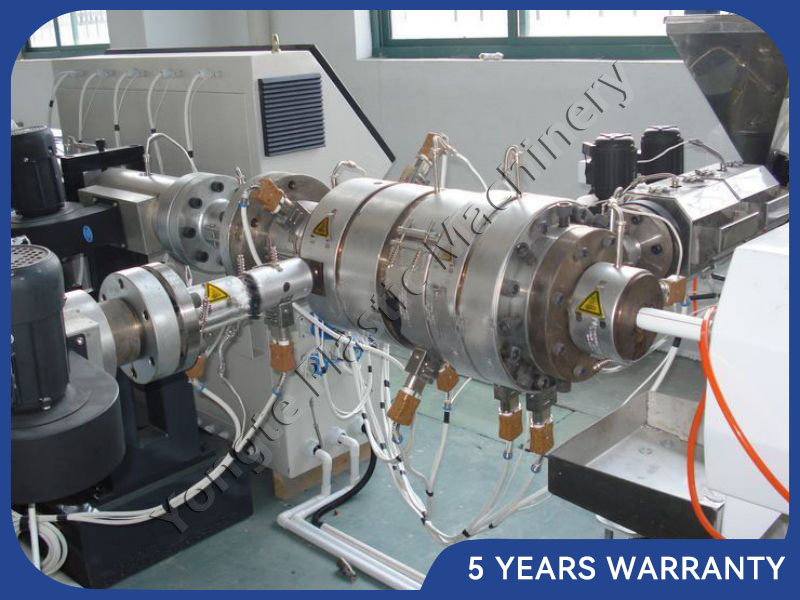

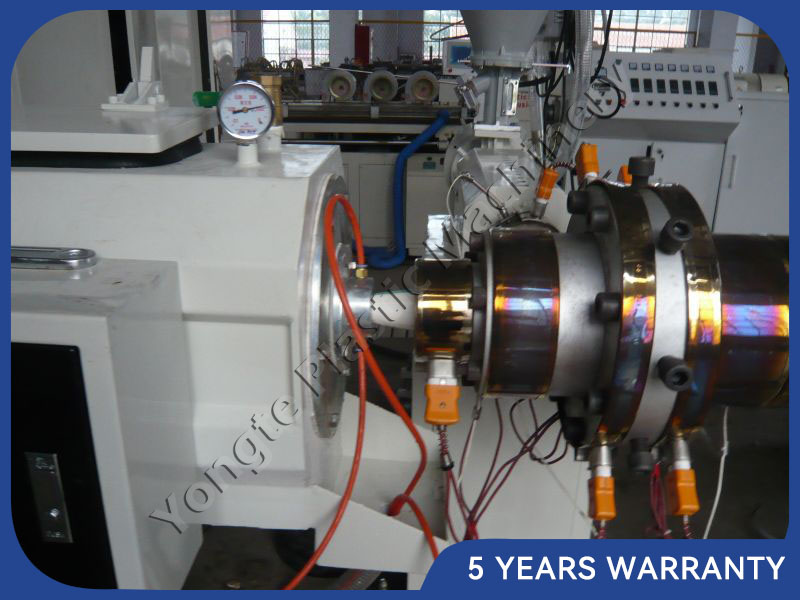

2. Extruder: the PE raw materials are heated and plasticized, and squeezed out into tubes through the mold.

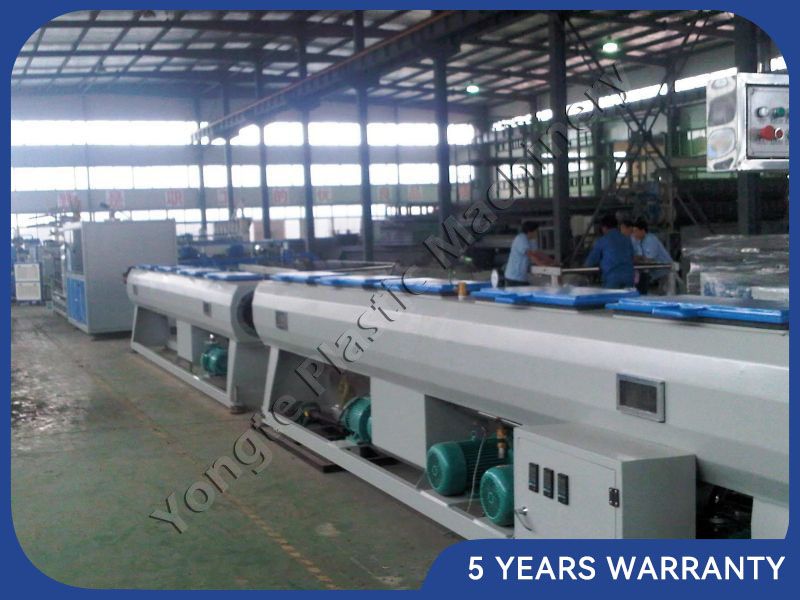

3. Cooling system: The extruded tubular PE is quickly cooled to solidify it.
4. Cutting device: Cut the cooled PE tube to the desired length.
5. Finished product testing and packaging system: quality inspection of produced PE pipes and packaging of qualified products.
1. High degree of automation: the whole production process to achieve a high automation, greatly improve the production efficiency.
2. Energy saving and environmental protection: the process and technology adopted in the production line, pay attention to energy saving and emission reduction, in line with the concept of green production.
3. Stable product quality: through strict quality control system, ensure the PE water supply pipe quality stable and reliable.
PE pipes produced by PE water supply pipe production line are widely used in urban water supply, agricultural irrigation, landscape and other fields. Due to its excellent performance, PE tube has been widely promoted and applied in urban construction.
