Yongte 75-250mm high-speed PE pipe extrusion equipment products are widely used in many fields. In the chemical industry, its corrosion resistance can safely transport all kinds of chemical liquids to ensure the smooth progress of production. In the field of mining, it can adapt to complex terrain and harsh environment, and is used for the transportation of pulp and other substances. In construction projects, it can play an important role as an underground drainage pipe and ventilation pipe. In addition, in garden landscape construction, pipe laying for irrigation and water feature layout is beautiful and durable. With its excellent performance and wide applicability, the products of this line provide strong support for the development of various industries.
75-250mm high speed PE pipe extrusion equipment, specially designed for the production of large diameter PE pipe. Efficient production of pipes from 75 mm to 250 mm in diameter. The equipment uses advanced extrusion technology to ensure accurate size and stable quality of the pipe. Its high-speed operation capability greatly improves production efficiency. Easy to operate, intelligent control system can monitor the production process in real time. In terms of technical application, it has a high-precision mold to make the pipe forming effect better. High quality screw is used to enhance plasticizing ability. It is widely used in water supply and drainage, gas transmission and other fields to provide reliable pipe support for engineering construction.

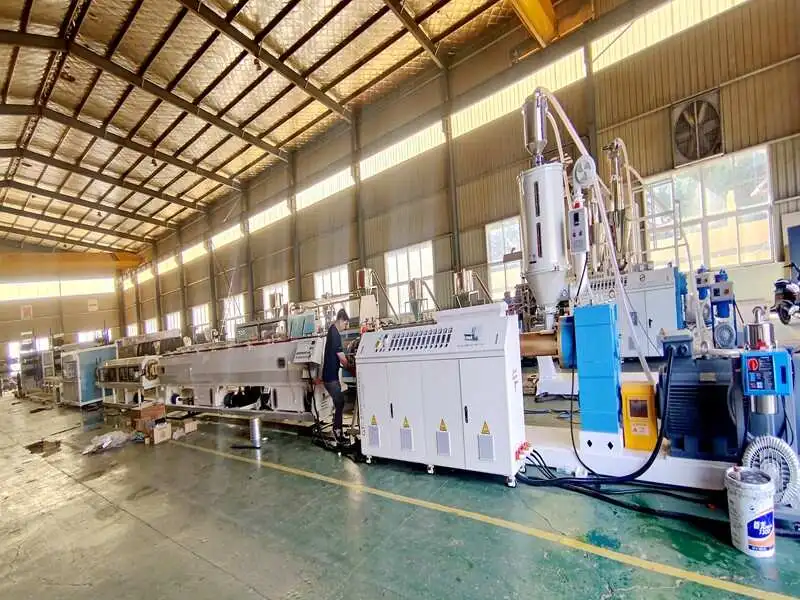

PE pipe production line mainly includes extruder, extrusion mold, vacuum setting box, spray cooling box, traction cutting system and stacker. First, the PE raw material is transported to the heating unit through the feeding unit and heated to a high temperature state to soften. Subsequently, the softened PE material enters the molding device, and after the pressing action of the mold, a specific specification of the pipe is formed. After forming, the pipe will enter the vacuum sizing box, and the density and quality stability of the pipe can be effectively improved by controlling the vacuum degree in the box. Next, the tube goes into a cooling system, where it is cooled to achieve solidification. Finally, the tube is cut to the desired length by a traction cutting system. Some pipes are also rolled into bundles by pipe winders for easy storage and transportation.
Yongte 75-250mm high-speed PE pipe extrusion equipment has significant advantages.
1. Efficient production. With high-speed extrusion function, the number of extruded pipe per unit time is large, to meet the large market demand. The optimized process design makes the production process smooth, reduces the delay and greatly increases the production speed.
2. High-quality output. Advanced mold design and precise extrusion control ensure high dimensional accuracy and small deviation of pipe, which is conducive to installation and connection and reduce cost. Stable performance, excellent physical and chemical properties, adapt to different scenarios reliable use.
3. Energy efficient. Advanced screw design with energy-saving motor to reduce energy consumption. Optimized heating and cooling system to improve energy efficiency and avoid waste.
4. Adapt to multiple specifications. It can produce a variety of pipes of 75-250mm to meet different needs and enhance market adaptability.
5. Stable and reliable quality. Select high-quality parts to ensure durability. Stable operation performance ensures long-term continuous production, reducing failures and losses.
|
Model |
16-30mm | 20-110mm | 75-250mm | 110-350mm | 315-650mm |
|
Main extruder |
SJ65/33 |
SJ75/33 |
SJ90/33 |
SJ90/33 |
SJ120/33 |
| Main motor | 37KW | 45KW | 75KW | 110KW | 160KW |
|
Extrusion capacity |
120-150kg/h | 160-180kg/h | 250-300kg/h | 300-350kg/h | 160-180kg/h |

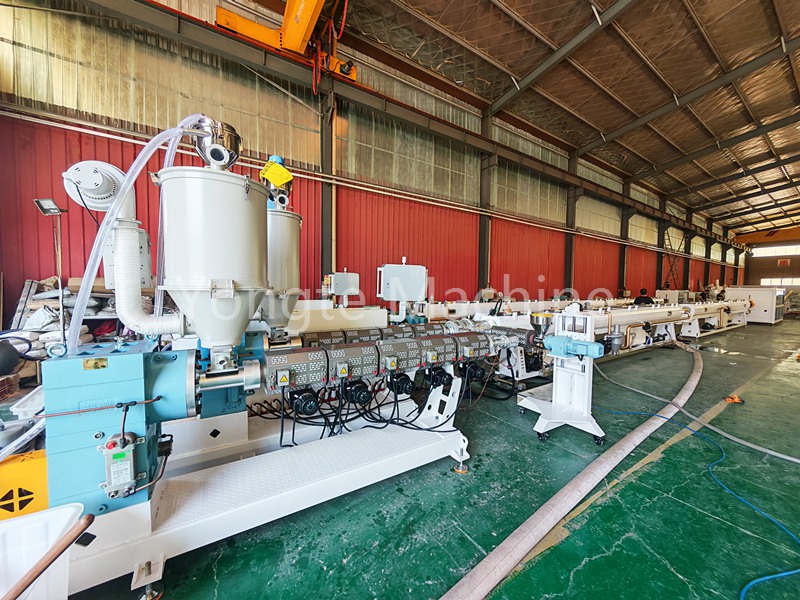

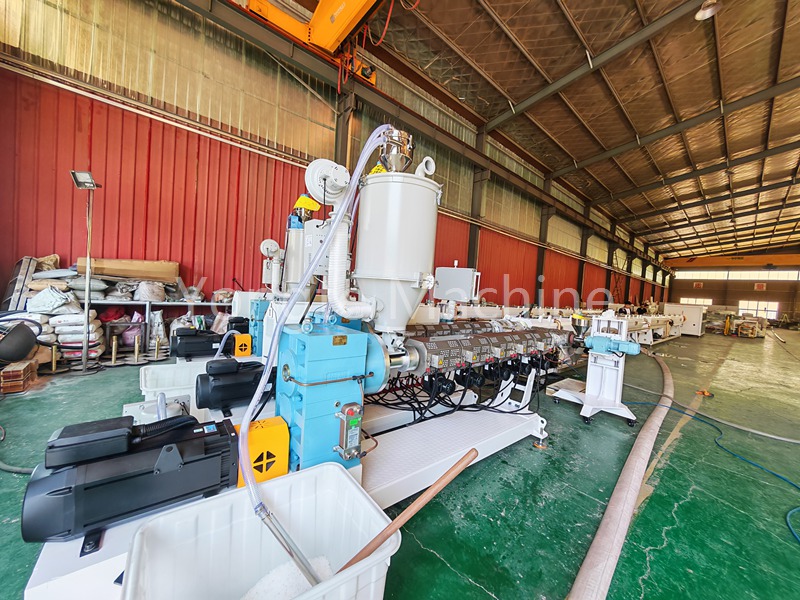

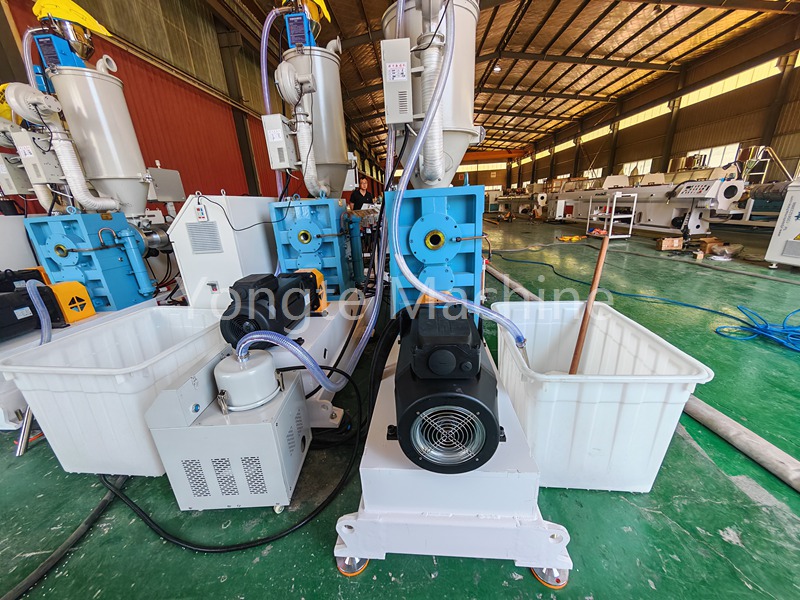

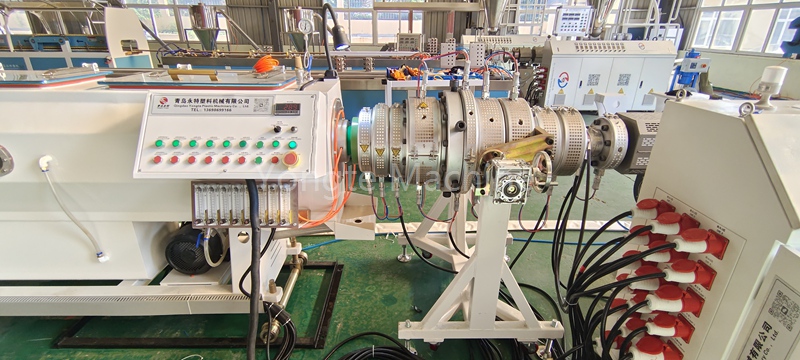

The PE pipe high speed extruder: the PE raw material into the hopper, rotating through the screw transport, compression and heating into a molten state, push into the head mold to form a specific shape of the pipe.

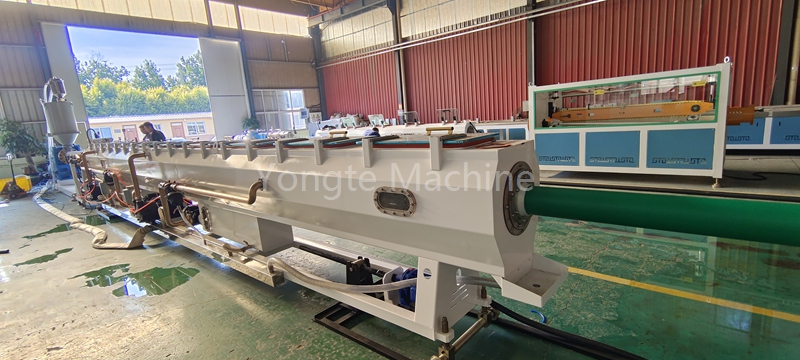

Vacuum setting box: The vacuum molding machine uses the principle of vacuum adsorption to make the PE pipe in high temperature melting state stick to the sleeve wall, and apply the vacuum degree to determine the outer diameter, so that the pipe is cooled and formed quickly.

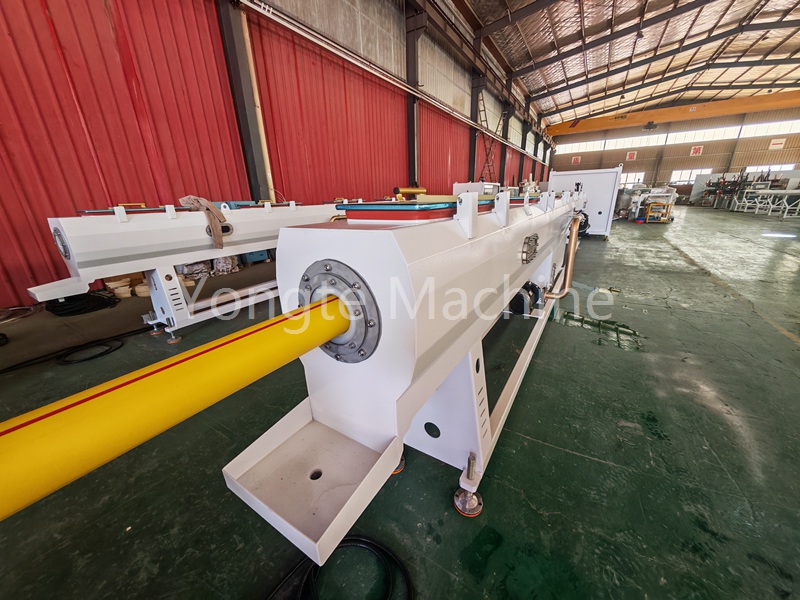

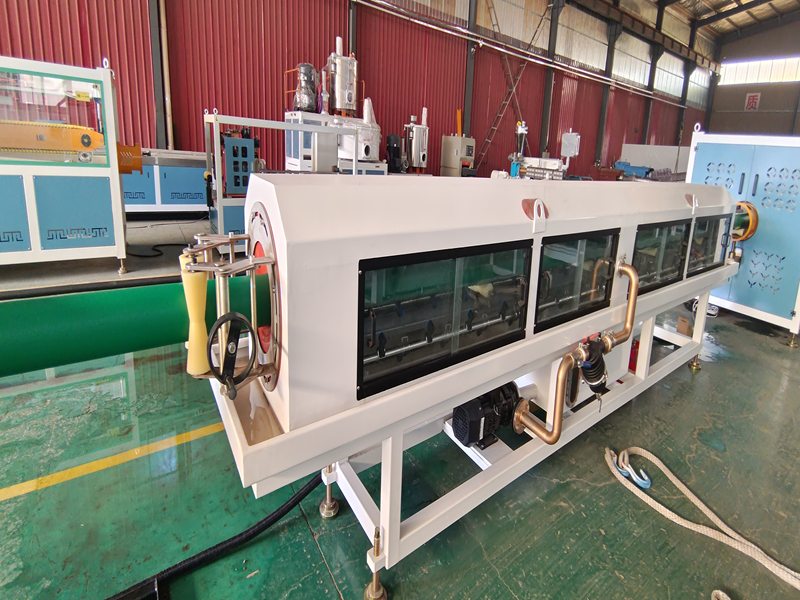

Spray cooling box: The pump carries water to the nozzle, spraying cooling water to cool the pipe and absorb heat. The guide device ensures smooth operation of the pipeline and avoids collision and friction.

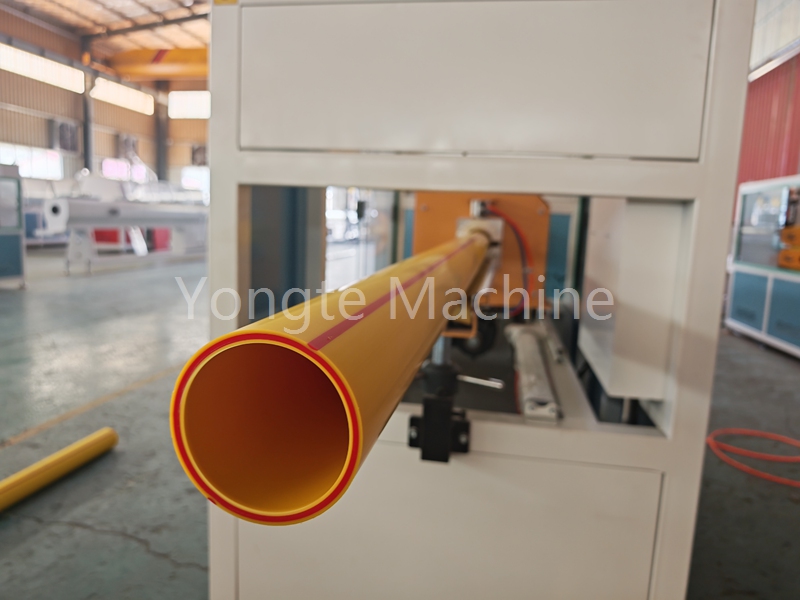

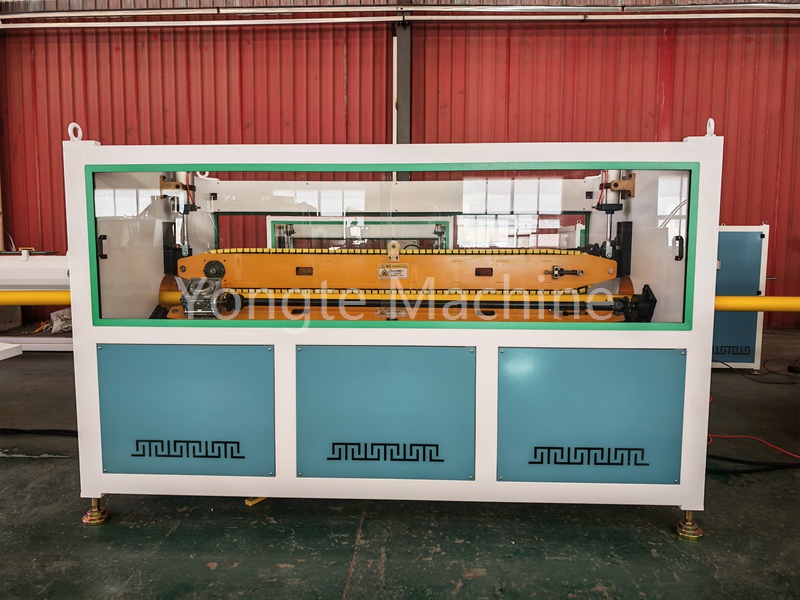

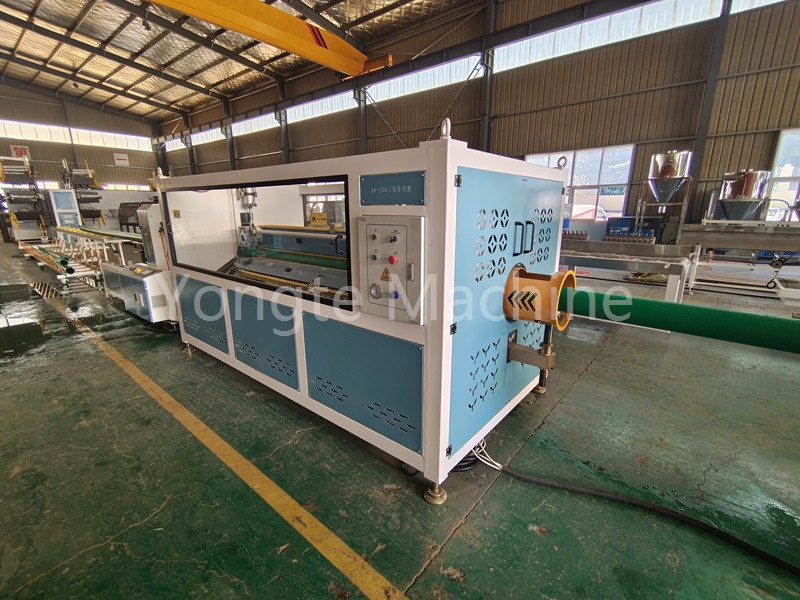

Traction machine: The traction wheel of the tractor rotates under the motor drive, the compacting device increases the friction force, the guiding device maintains stability, and the control system controls the speed, etc., to ensure the quality and efficiency of the pipe production.

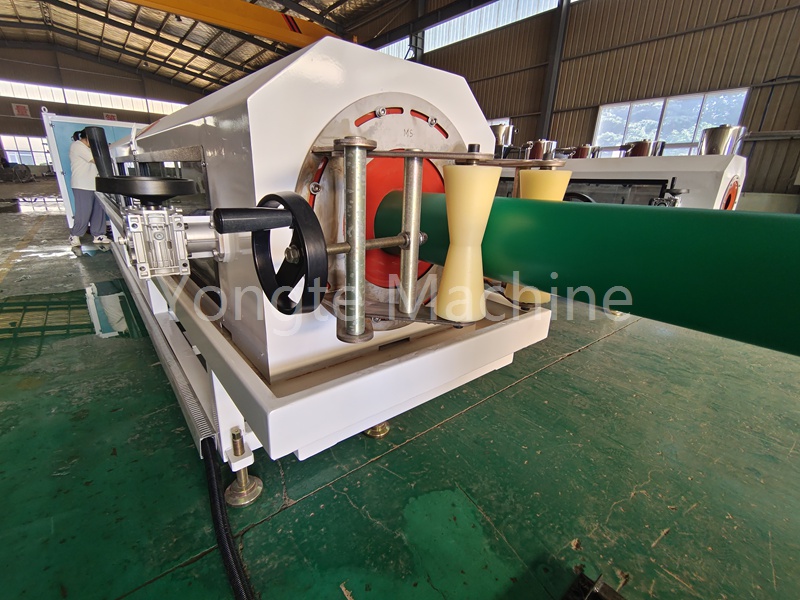

Cutting machine: When the PE pipe reaches the predetermined cutting length, the control system sends a signal to start the clamping device to fix the pipe. Then, the cutting drive drives the cutting tool to rotate or move to cut the pipe.

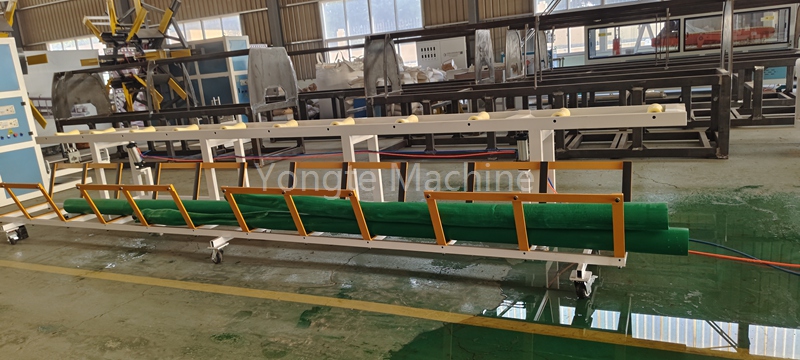

The product stacker: The product stacker receives the cut PE pipe and stacks it accurately according to the instructions.
Winder: The winding machine driver drives the winding roller to rotate and wind the pipe, and the tension control system keeps the tension stable. Stop when it reaches a certain length or weight, and wind the lower wheel after removing it.
PE pipe is widely used. In the field of water supply, it is used for urban water supply and rural drinking water projects to safely transport drinking water. In terms of drainage, it serves the municipal drainage network and industrial wastewater discharge, preventing leakage and pollution. In gas transmission, it is the first choice for urban gas pipelines and filling stations to ensure safety. Agricultural irrigation, to meet the needs of farmland and orchard irrigation. In addition, it can also be used for conveying materials in mines and as a communication cable protection sleeve, playing an important role in various fields with excellent performance.
