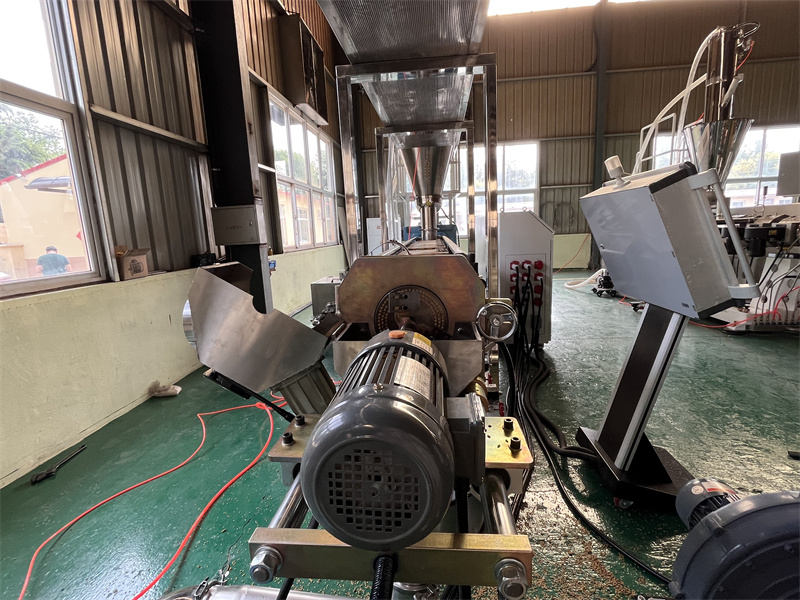

Yongte is a quality supplier specializing in the production of WPC granulation machine. Wood-plastic granulator is a kind of equipment that can mix waste wood and plastic to make recyclable wood-plastic composite particles. This machine is usually composed of feeding system, crusher, rotary screening equipment, mixer, pelletizer, cooler, packaging machine, etc. The use of wood plastic granulator can well solve the problem of waste wood and plastic treatment, reduce environmental pollution, and improve the utilization efficiency of resources.
Yongte wood plastic granulator is a special equipment for the manufacture of wood plastic composite particles, mainly composed of feeding system, crusher, rotary screening equipment, mixer, granulator, cooler, packaging machine and so on. The equipment mixes waste wood and plastic, and makes granular products after several processes such as crushing, mixing and granulation. This particle can be used to make floors, doors and Windows, garden landscape and other products, with the advantages of durability, waterproof, moisture-proof, environmental protection and so on. In the production, our wood molding equipment can adjust the requirements of wood plastic particles according to customer needs to meet the product quality and specification requirements.
|
Processing material |
PE /PP plastic and wood composition |
|
Production capacity |
500-600 kg/hour |
|
Percentage of wood powder |
40-70% |
|
Main motor power |
90 KW |
|
Heating power |
54 KW |
|
Machine size |
18 meter *1.5 meter *2.5 meter (Length* width* height) |
|
Output material size |
<10mm |
1.Raw material preparation: The waste wood and plastic are cleaned, dried, broken and other pretreatment processes to meet the requirements of the granulator for raw materials.
2.Raw material mixing: the pre-treated wood and plastic are mixed, and a certain amount of additives, such as additives, preservatives, etc., are added to improve the performance and quality of the product.
3.Granulation: After the mixed raw materials into the granulation machine, after high pressure, high temperature and other conditions of extrusion, molding, cutting and other processes, to make the same specifications of wood plastic particles.
4.Cooling: After granulation, the particles also have a certain temperature, which needs to be cooled by the cooler to reach the ambient temperature, and at the same time, the water in the particles can be volatilized and dried to improve product quality.
5.Packaging: The cooled wood plastic particles are packaged, usually using plastic bags or paper bags, so as to facilitate storage, transportation and circulation.
Electrical control system: Professionally equipped with ABB or Delta inverter, Omron temperature controller, Siemens or Schneider suppliers.

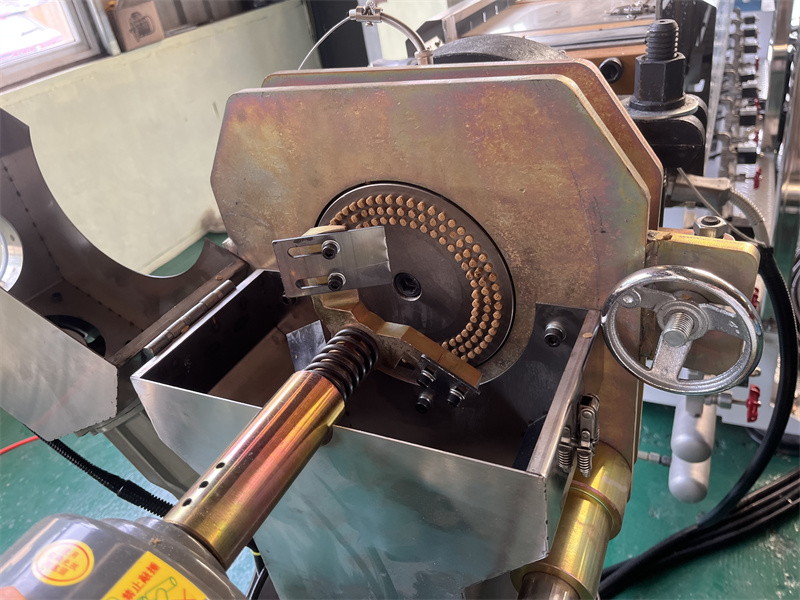

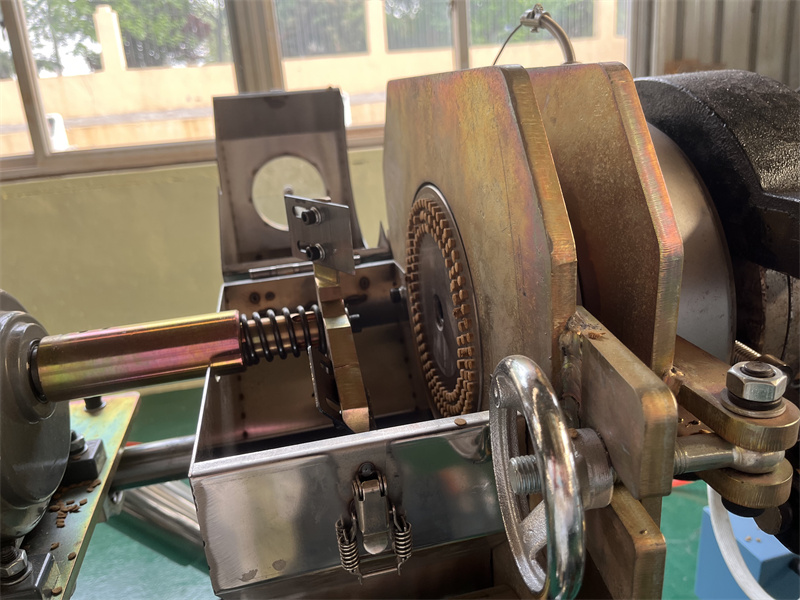

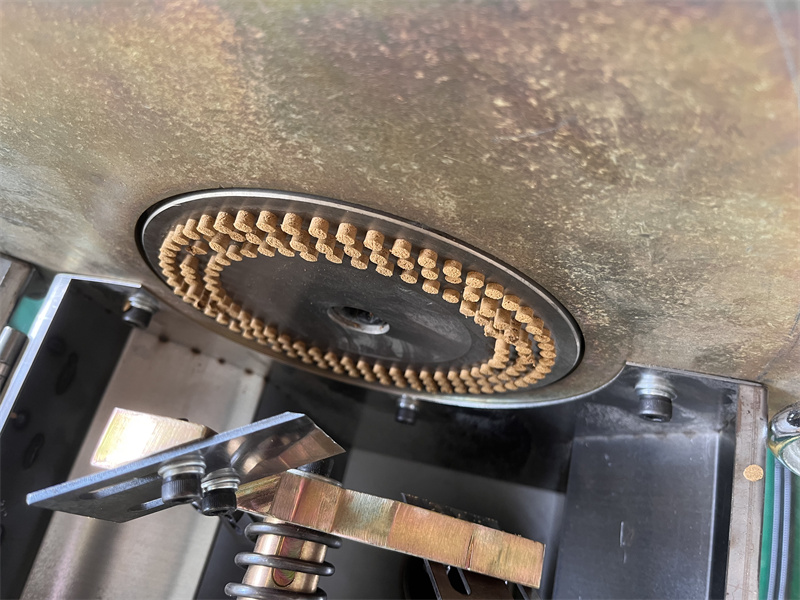

Granulator head cutting parts：The pelletizer head cutting part is one of the core components of the pelletizer, which is usually composed of several parts, such as the cutter head, the cutter seat, the blade, the fixed nut, and the regulating valve. The pelleting unit uses a high-speed rotating blade to cut the raw material into fine particles, which can have different shapes and sizes. Blades are usually made of high-quality alloy tool steel or stainless steel to better resist wear and corrosion and extend service life. The control valve can precisely adjust the discharge speed of the granulated parts to adapt to the processing requirements of different raw materials. The design and processing quality of the pelletizer directly affect the output and effect of the pelletizer, so it is very important to choose high-quality raw materials and maintain a standardized manufacturing process.
Primary crushing fan：The primary crushing fan is a kind of equipment for crushing and transporting raw materials, which is an important part of the dust treatment system. The primary crushing fan is usually composed of rotor, impeller, shell, inlet and outlet and other parts. The raw material enters the machine through the feed port, under the action of the high-speed rotating impeller, is hit, broken and dispersed, and then under the action of the fan, is sent to the next process.
Three steps cooling system：The three-step cooling system is a kind of equipment used in the pellet production line, which is usually composed of three stages of the cooler, the discharge valve, the conveyor belt and other parts. In the particle production process, hot particles need to be cooled to improve particle density and hardness. The working principle of the three-step cooling system is to gradually cool the hot particles through a continuous cooler, and gradually reduce their internal humidity, so as to achieve the ideal physical properties and maintain long-term storage conditions. The temperature, air volume, import and export parameters of each cooler can be adjusted according to the different particle materials. The cooled particles are then transported and packaged by conveyor belt and other equipment for subsequent processing.
Qingdao Yongte, a production-oriented enterprise that keeps pace with the times and constantly innovates, focuses on the design, production and installation of plastic equipment. We have brought together experienced mechanical design elites, professional production and processing teams, and responsible installation and commissioning experts to provide customers with excellent formula design and optimization services.
