Yongte WPC granulation machine with crusher is used for making wood and plastic composite material from recycled PP/PE plastic and wood powder, the WPC compound material can be used for making WPC profiles, such as WPC decking, wpc wall cladding, wpc column, wpc pergola profiles etc.

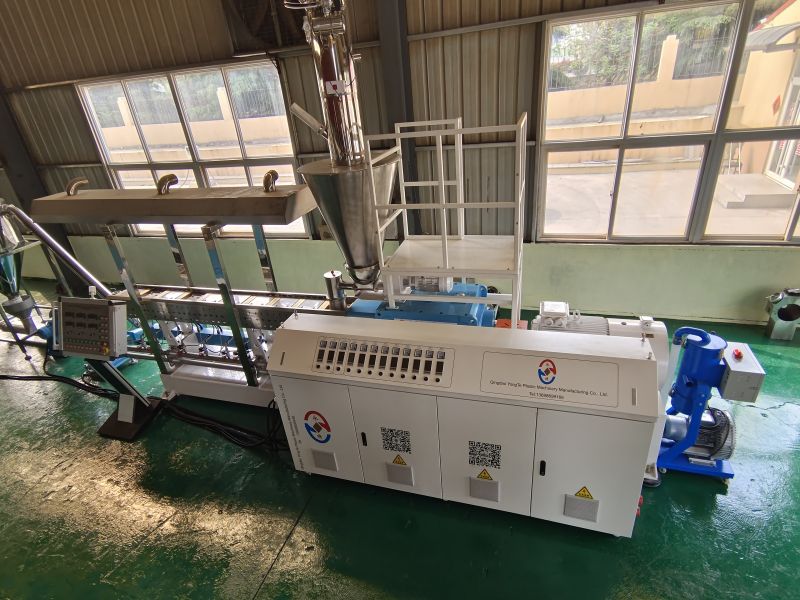

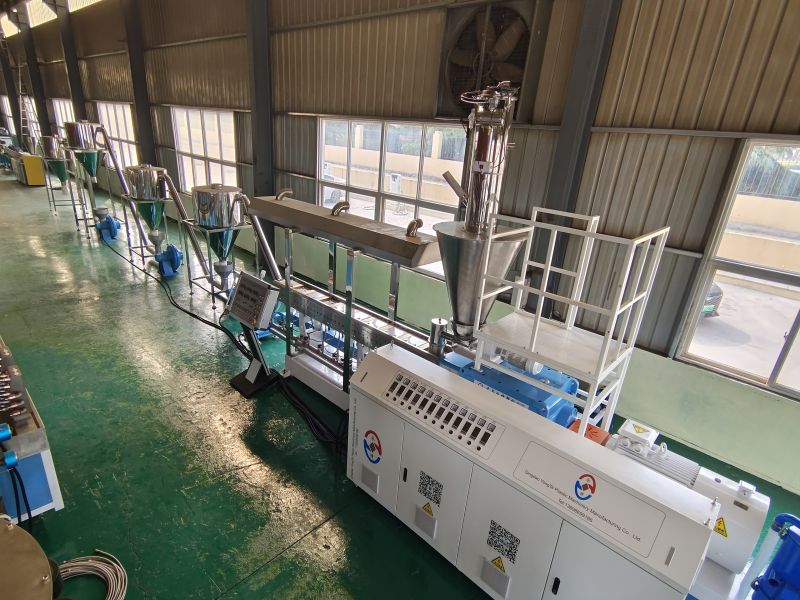

Yongte WPC granulation machine consists of a parallel twin-screw extruder, a primary crushing fan, a three-stage air conveyor, a fine crusher and a storage silo. The screw of the parallel twin-screw extruder adopts a building block structure, fully meshed, with strong self-cleaning properties, good screw exhaust effect, and a bimetal 8-type integral sleeve, which is wear-resistant and corrosion-resistant. Any combination according to the requirements of the material process, wide adaptability. The unique three-dimensional cooling structure, powerful crushing and air-cooling structure greatly improve production efficiency.
| Technical | Parameter |
| Main motor | 90-110kw |
| Capacity | 500-600kg/h |
| Extruder model | SH75 parallel double screw extruder |
| Machine size | 18m length *1.5m width*3m height |

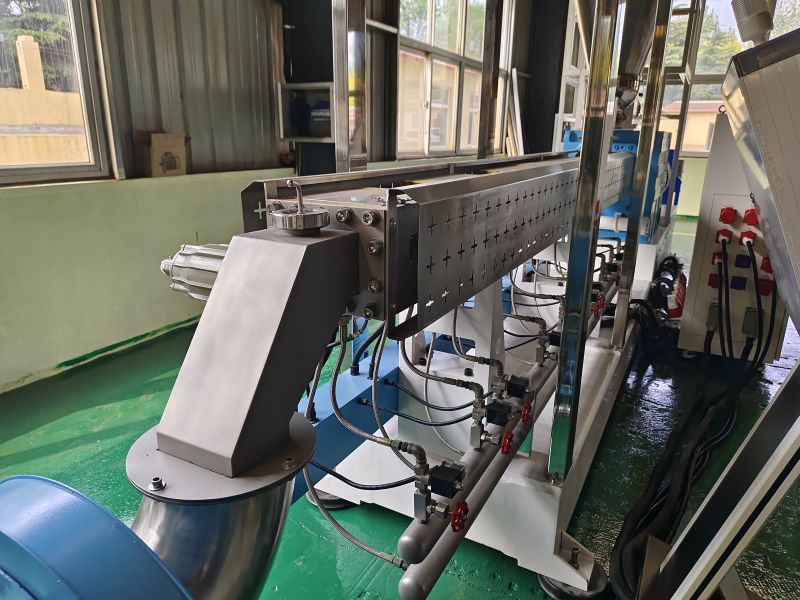

SHJ 75 twin-screw mixing and extrusion unit,
Screw diameter: 72mm,
L/D ratio 40:1,
Main motor: 90KW motor,
Screw element material: high-quality high-speed tool steel W6MO5Cr4V2
Barrel heating: cast aluminum high-quality heating ring
Barrel cooling: water circulation cooling
First crushing blower:1 set
Power: 3 kw (it is used for primary crushing of WPC material)
Cooling blower: 3 sets, Power : 2.2kw

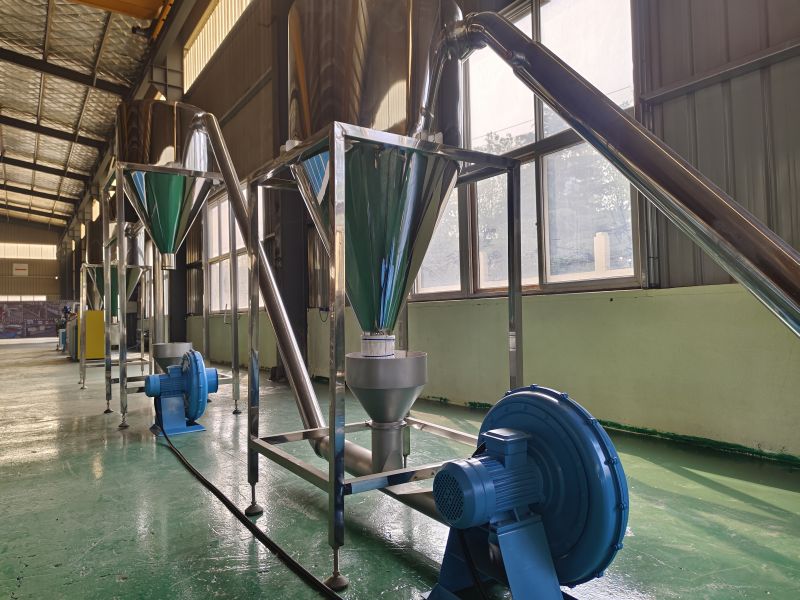

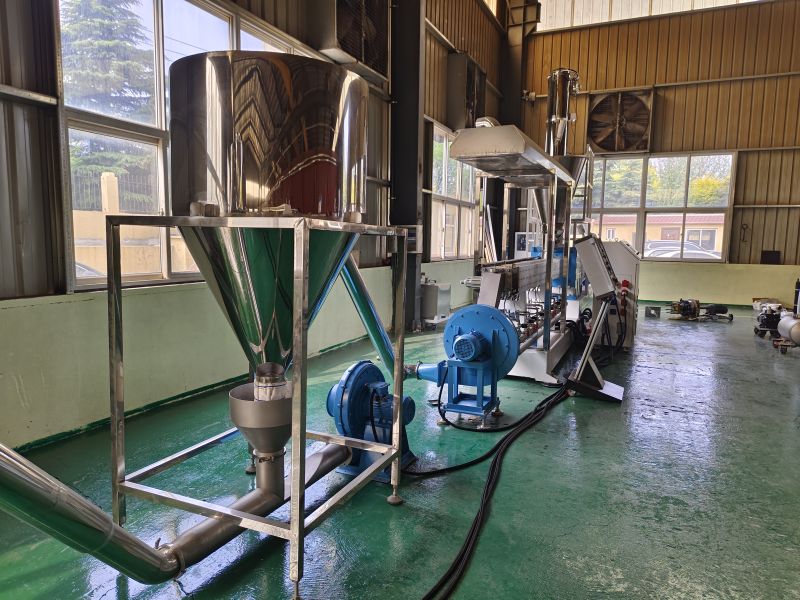

Material silo: 4 set, made by stainless steel
Convey pipe: 4 sets made by stainless steel
The 1st and 2nd sets are made with two layers for water cooling
Crusher: 1 set
Power 7.5kw
Qingdao Yongte, a production-oriented enterprise that keeps pace with the times and constantly innovates, focuses on the design, production and installation of plastic equipment. We have brought together experienced mechanical design elites, professional production and processing teams, and responsible installation and commissioning experts to provide customers with excellent formula design and optimization services.
The WPC granulation machine is used for making wood and plastic composite material from recycled PP/PE plastic and wood powder, the WPC compound material can be used for making WPC profiles, such as WPC decking, wpc wall cladding, wpc column, wpc pergola profiles etc.
