Yongte WPC Decking Extrusion Line is CE certificated with high quality and great customer service, it is composed by auto feeder, conical double screw extruder, die and mold, cooling and calibration machine, tractor and cutter, and electric control system. Yongte is a good supplier to buy WPC decking extrusion line

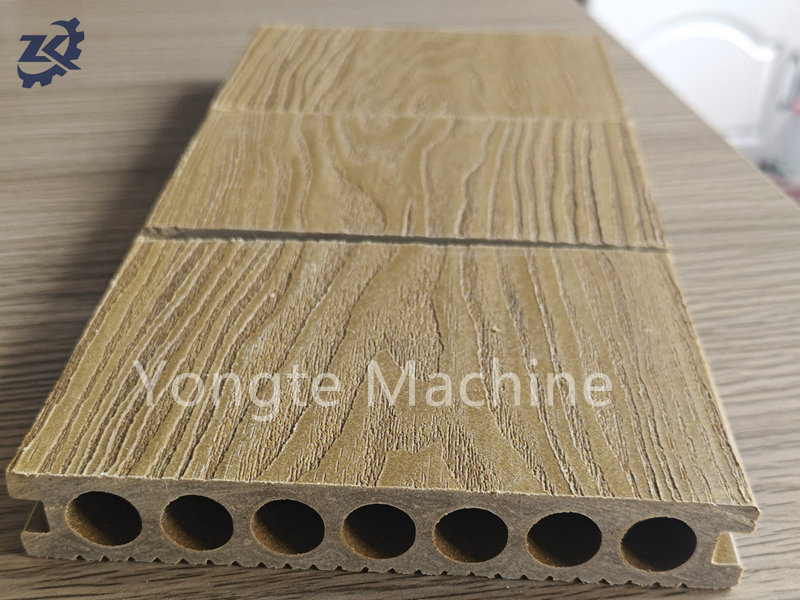

WPC Decking Extrusion Line is used for making WPC decking product from wood and plastic composite material. the machine also can be used for making other WPC profiles by changing mold, such as WPC wall cladding, WPC fence panel, WPC pergola profiles, WPC post, WPC chair profiles.
The working principle of the WPC decking extrusion line is: WPC granules are feeded into the hopper of the extruder. The extruder plasticizes the mixture through high temperature and pressure, and then extrudes it through a die into a profile of the desired shape. Finally, after cooling and cutting, the finished wood plastic profile is obtained. Co-extrusion is optional for making better wpc products with anti-weather layer.
Model | YT300 WPC Decking Extrusion Line |
Applicable material | wood and plastic composite |
Extruder | SJSZ65/132 conical double screw extruder |
Main motor | 37KW |
Extrusion capacity | 240 kg/hour |
Max.product width | 300mm |
Installation power | 125KW |
Machine installation size | 20m * 1.5m *3.5m (length*width*height) |
Produced product | WPC decking, WPC wall panel, WPC Fence, WPC post, WPC pergola profile, WPC chair and other WPC profiles |
WPC Decking Extrusion Line is composed by auto feeder, conical double screw extruder, die and mold, cooling and calibration machine, tractor and cutter, and electric control system. During the production process, the raw materials enter the extruder through the feeding system, and are heated, mixed, and melted by the extrusion screw. Then, the molten material is extruded through the die to form the desired shape. The extruded product enters the cooling system for cooling, and the cooled product is pulled out of the extrusion line by the traction machine, and finally cut by the cutting device.

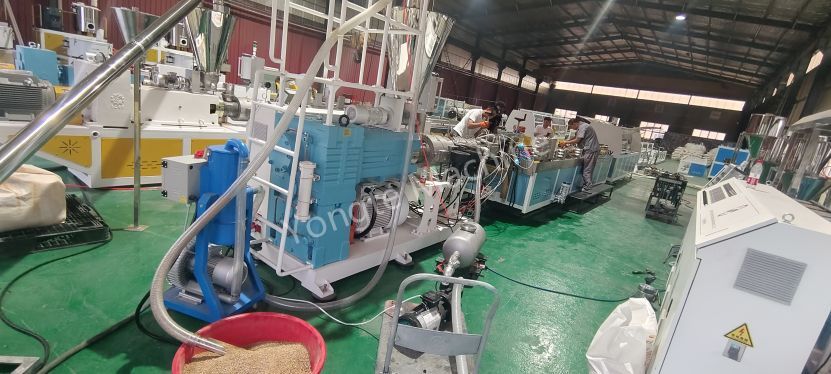

Conical Twin-screw extruders have the characteristics of forced extrusion, high quality, wide adaptability, long life, low shear rate, difficult material decomposition, good mixing and plasticizing performance, and direct powder molding. It can be used for the production of pipes, plates, special-shaped materials and other products. The screw configuration design of the extruder is very important. A reasonable screw structure can reduce the friction between the screw and the wood fiber, produce appropriate shear and dispersion mixing, and make the material system containing a large amount of wood powder plasticized well and evenly.
The mold design needs to ensure the smooth transition of the flow channel design and reasonable flow distribution. Since wood-plastic composite materials have higher requirements for pressure-building capacity and temperature control accuracy, in order to obtain good fiber orientation and product quality, the die head must have sufficient pressure-building capacity and a long shaping section, and even a double-taper structure may be used in the compression section and the shaping section.

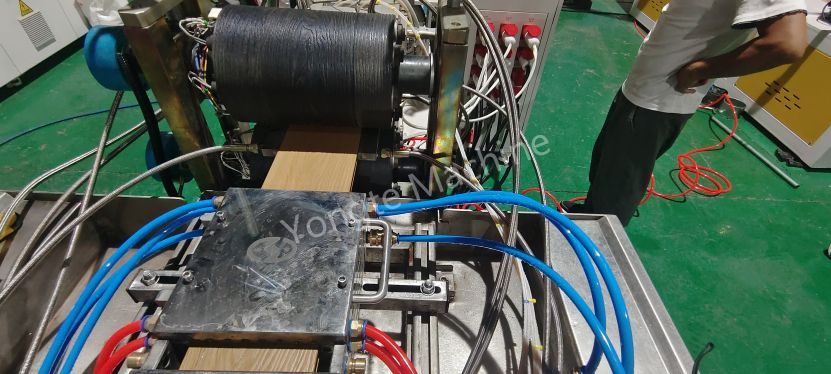

online embossing machine can make 3D deep embossing design on the WPC profiles when the product is still hot from the mould. it is easy operate and save manpower.

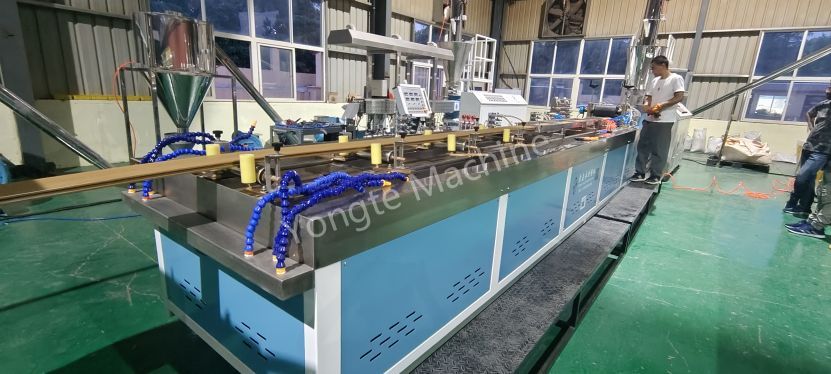

used to cool and shape the extruded profiles so that the profiles can obtain the required shape and size. Since wood-plastic composite materials have poor thermal conductivity and most of their products are special-shaped profiles, cooling and shaping are difficult, and water cooling is often used for shaping.

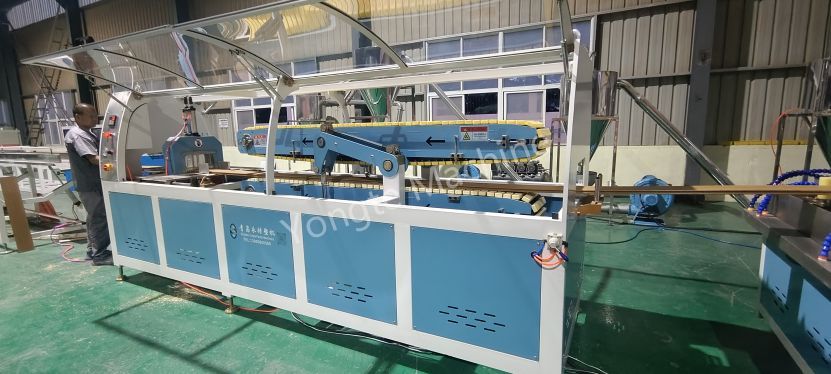

The tractor adopts unique technology, works smoothly, has good reliability, and has a large traction force. The speed of the tractor needs to match the extrusion speed of the extruder to ensure the smooth traction of the profile.
6. Cutting machine for WPC Decking Extrusion Line

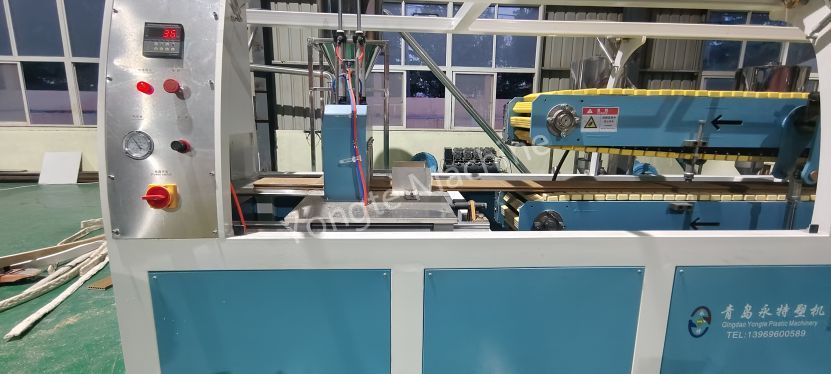

used to cut the continuously extruded profiles according to the set length. The cutting machine should have the characteristics of reliable and accurate operation and high cutting accuracy. Some cutting machines are also equipped with dust recovery devices.
Equip with ABB inverter control, Siemens Contractor, Omron temperature controller,
