Yongte is manufacturer factory producing the wood plastic WPC furniture board making machine, we supply high quality machine and great customer service, our WPC furniture board making machine is widely installed all over the world.

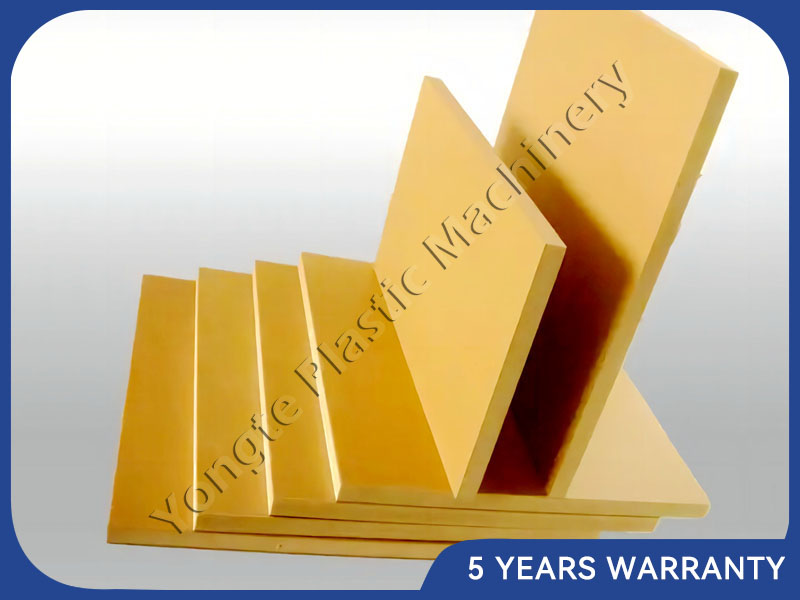

Wood plastic furniture board is a new type of environmentally friendly material that combines the advantages of wood and plastic. Through the special production process, the wood fiber and plastic are mixed and hot pressed, and finally the plate with both wood texture and plastic durability is formed.
Wood-plastic WPC furniture board production line mainly includes the following links:
1. Raw material preparation: choose high-quality wood fiber and plastic raw materials to ensure the stable performance of the plate produced. wood powder should be 80-100 mesh size, plastic raw material should be PVC powder, and some chemical additives

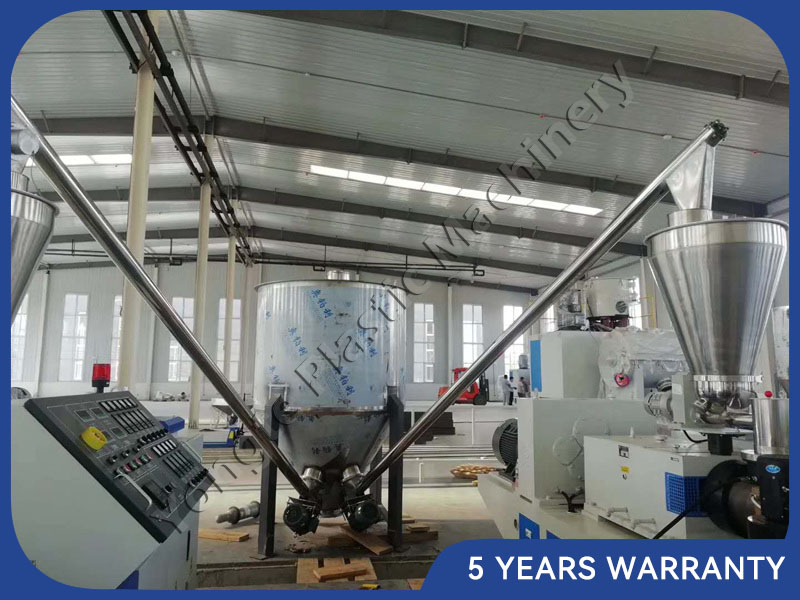

2. Mixing machine: Mix the wood fiber and plastic in a certain proportion and mix well through a mixer.

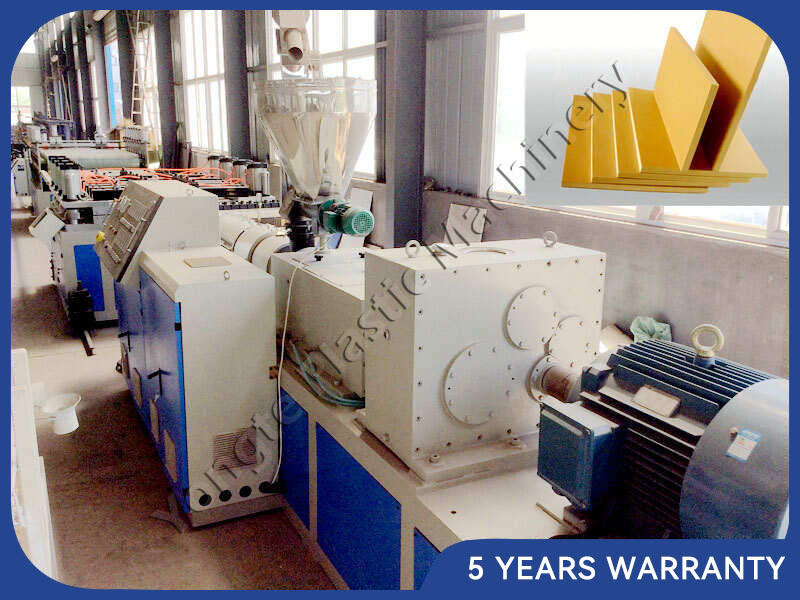

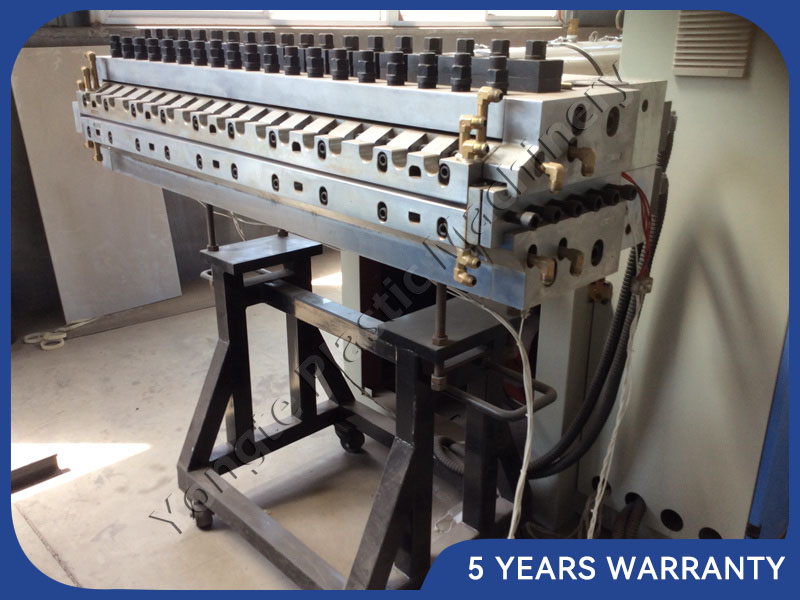

3. WPC board extrusion line and mold: the mixed material enters the conical double screw extruder. After cutting and mixing of the screw, the wood-plastic material is plasticized into the mold of the wood-plastic board. Generally, the width of the wood-plastic board is 1220mm and the thickness can be adjusted to 3-30mm.

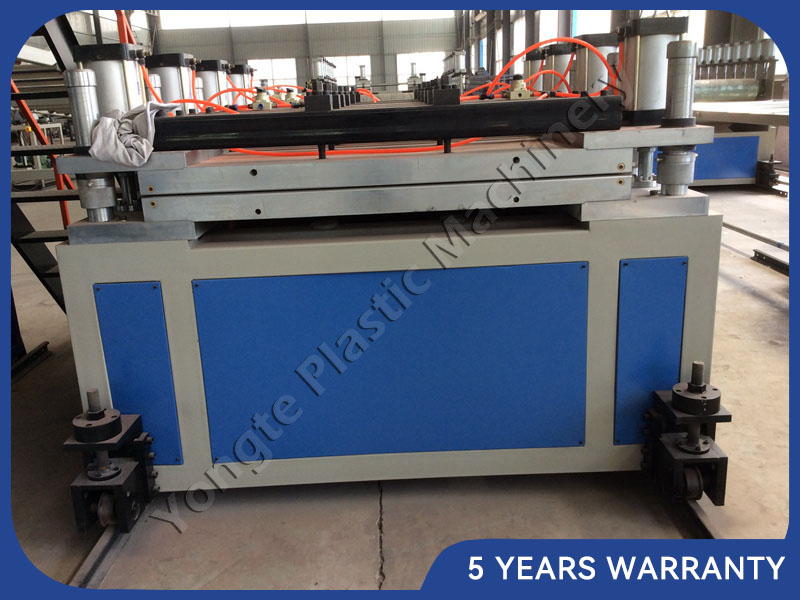

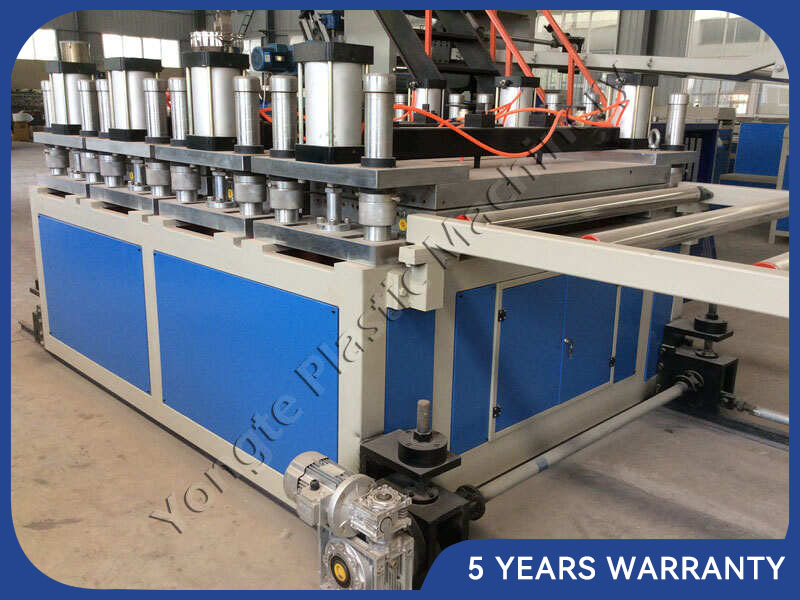

4. Cooling and calibrating: the extruded plate enters the setting mold for cooling and setting.
5. Post-processing: including cutting, grinding, lamination, quality inspection and other links, to ensure that each plate meets the quality requirements.
Model
80/156
80/173
92/188
WPC board Extruder
SJSZ80/156 conical double screw extruder
SJSZ80/173 conical double screw extruder
SJSZ92/188 conical double screw extruder
Screw diameter
80mm
80mm
92mm
Main motor
75kw
90kw
110kw
Product width
1220mm
1220mm
1220mm
Product thickness
3-18mm
10-35mm
20-40mm
Production capacity
300-350kg/h
350-400kg/h
400-500kg/h
1. Environmental protection: the production process of wood-plastic furniture board reduces the cutting of wood and reduces the damage to the environment.
2. Durability: with plastic durability, not easy to be damp, deformation, long service life.
3. Beautiful: the surface can be copied from a variety of wood texture, the appearance and solid wood furniture is similar, but the price is more affordable.
Easy processing: can be saw, drill, nail and other processing, convenient to make all kinds of furniture.
