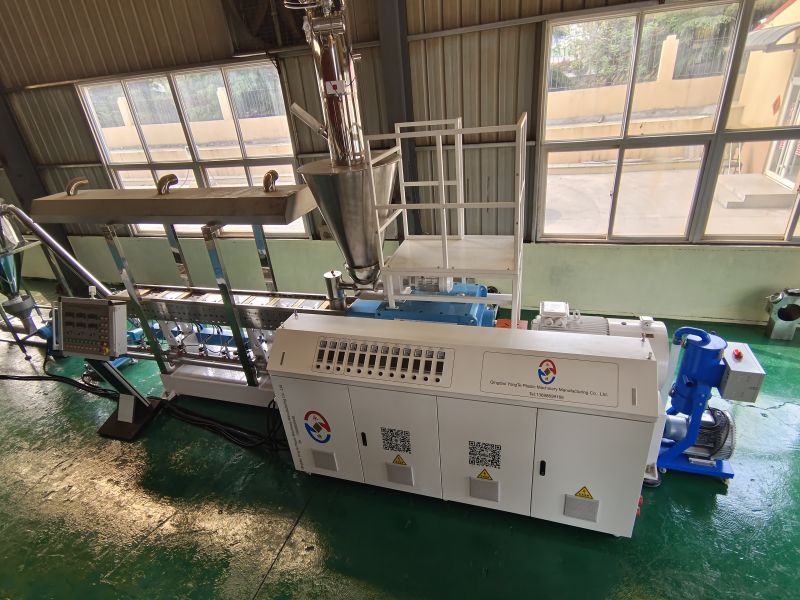

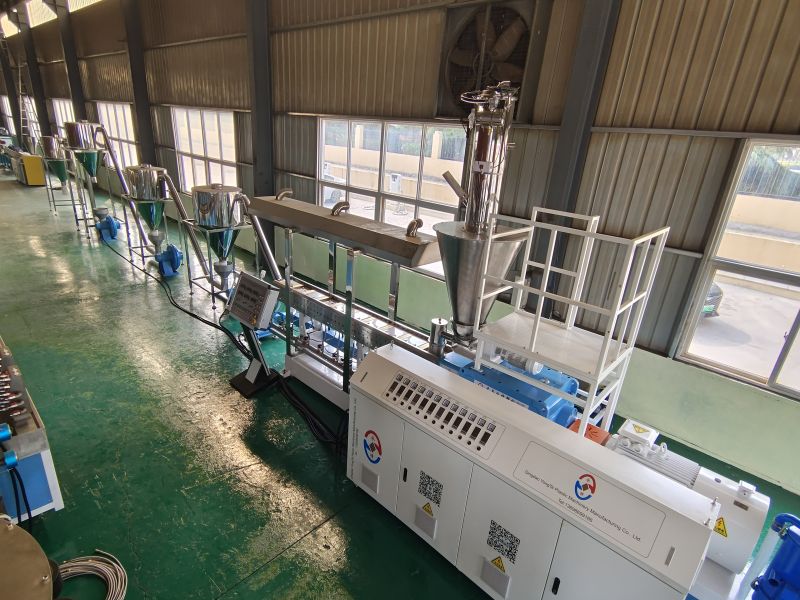

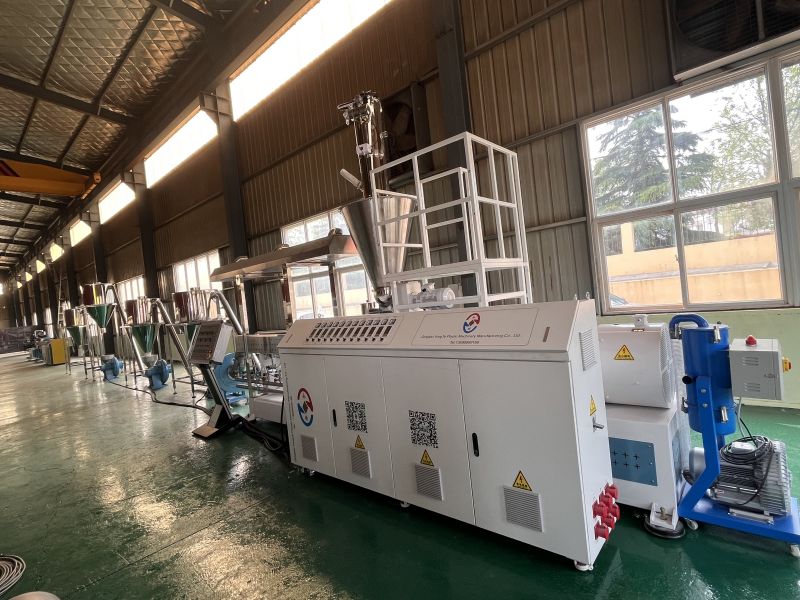

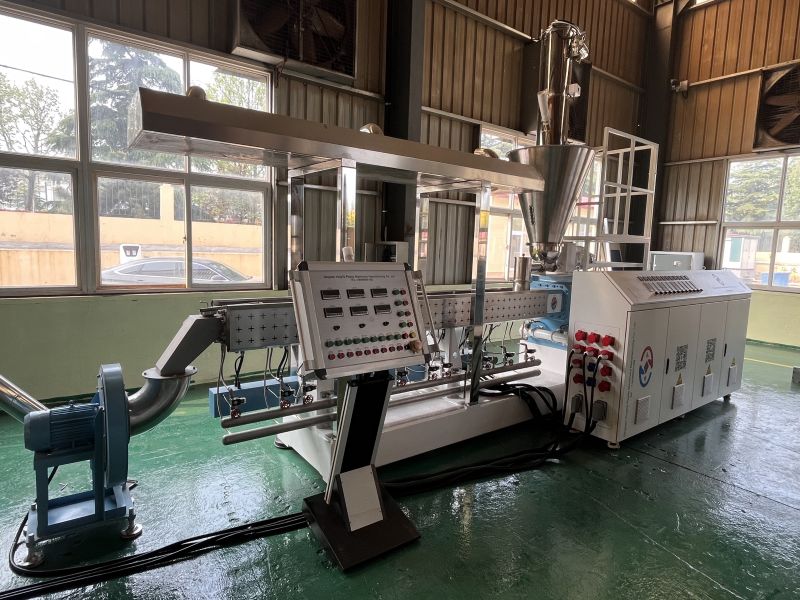

Yongte High Capacity WPC compound granulation machine is used for making WPC granules from PP/PE plastic and 60-70% wood powder, it can get 500-600kg/hour high production capacity for making high quality WPC compound material.

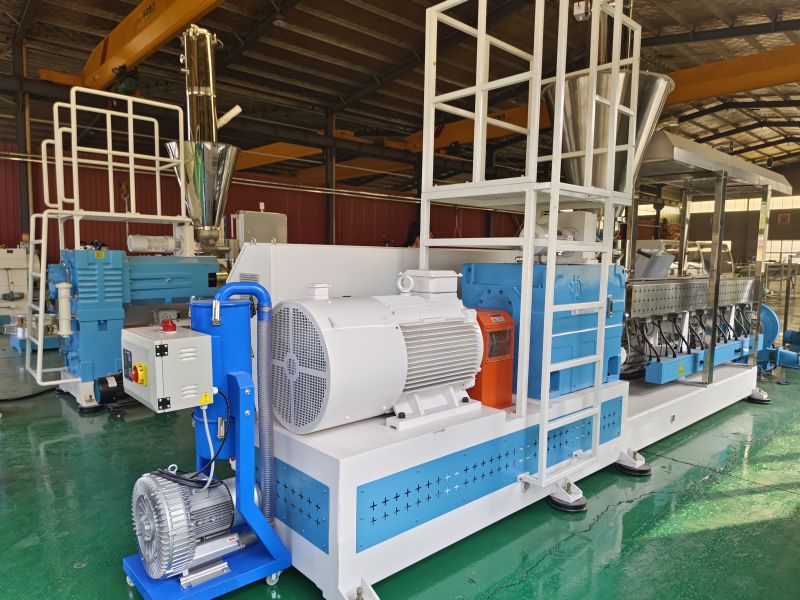

Yongte high capacity WPC compound granulation machine is composed of parallel double screw extruder, secondary crushing and tertiary air cooling and storage bin. The parallel double screw extruder screw adopts building block structure, fully meshing type, strong self-cleaning ability, good screw exhaust effect, bimetallic type 8 integral set, wear resistance and corrosion resistance. According to the requirements of the material process of any combination, extensive adaptability. Unique three-dimensional cooling structure, powerful crushing and air-cooled structure, so that the production efficiency is greatly improved.
| Processing material | PE /PP plastic and wood composition |
| Production capacity | 500-600 kg/hour |
| Percentage of wood powder |
40-70% |
| Main motor power | 90 KW |
| Heating power | 54 KW |
|
Machine size |
18 meter *1.5 meter *2.5 meter (Length* width* height) |
| Output material size | <10mm |
The parallel twin-screw extruder consists of two parallel screws. Under the action of mutual friction and shear, the plastic raw materials are gradually melted and pushed to the outlet. In this process, parameters such as screw rotation speed, temperature and pressure will affect the plastic processing effect. By precisely controlling these parameters, high-quality, efficient production of plastic products can be achieved.
Material loading: screw loader and vacuum suction loader both are optional.
Material of hopper: made by 304 stainless steel
Material feeding: double screw feeding material to barrel uniform
Heating system
(1) Temperature control by Omron brand
(2) Material of heater: infrared high effective heater
(3) barrel cooling: by water cooling
(4) Heating zones: 9 zones

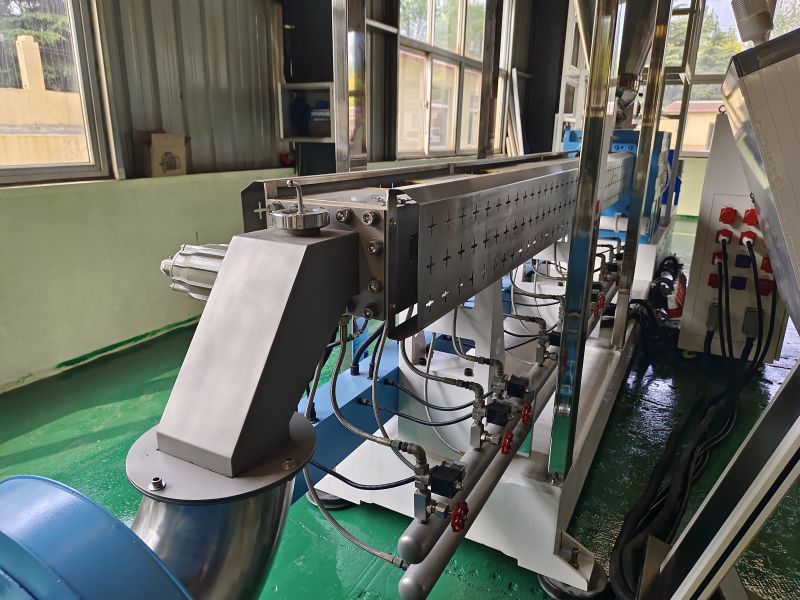

primary crushing fan is used for crushing the melted WPC compound material.
Motor power: 3 kw
Crushing blade: specially designed and made by wearing material.
Convey pipes: made by 304 stainless steel
Three steps cooling system
Fan power: 1.5 kw *3 sets
Convey pipe: made by stainless steel, double layer with water cooling
Crusher power: 5.5kw
Electricity control system: equip with ABB or Delta inverter, Omron temperature controller, Siemens or Schneider contractor. English language .
