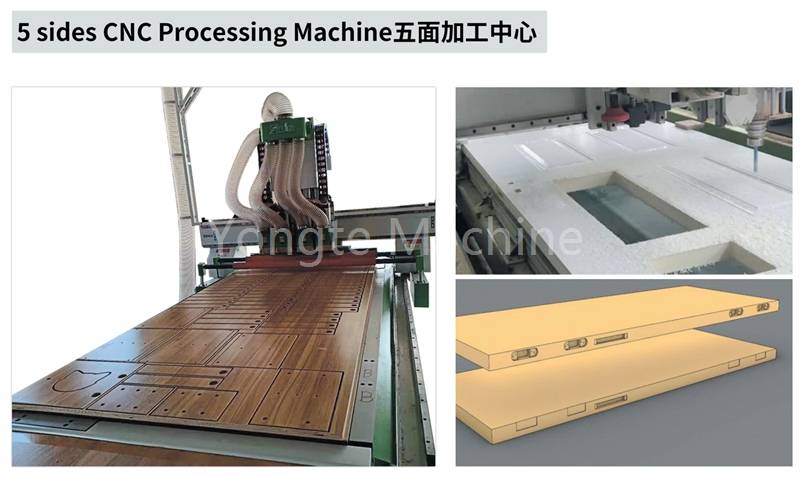

Five-face machining center for WPC door drilling and craving usually refers to universal machining center, which is a machine tool with the functions of vertical machining center and horizontal machining center. After the workpiece is clamped once, it can complete the processing of all side and top surfaces except the installation surface.
Five-face machining center usually refers to universal machining center, which is a machine tool with the functions of vertical machining center and horizontal machining center. After the workpiece is clamped once, it can complete the processing of all side and top surfaces except the installation surface.
Structural features of Five-face machining center for WPC door drilling and craving
Spindle: The spindle can rotate 90°, which can process the workpiece in the vertical direction like a vertical machining center, and can also process the workpiece in the horizontal direction like a horizontal machining center; or the spindle does not change direction, and the workpiece is rotated 90° through the workbench to achieve the processing of five faces.
Workbench: The workbench generally has high precision and rigidity, can withstand large cutting force and workpiece weight, and can achieve precise positioning and indexing to meet the processing requirements of different angles and positions.
Tool magazine: It is usually equipped with a large-capacity tool magazine that can accommodate multiple tools. The automatic tool changer can automatically change the tool according to different processes during the processing process to improve the processing efficiency and precision.
Working principle of Five-face machining center for WPC door drilling and craving
The working principle of the five-face machining center is to control the movement of each axis of the machine tool through the CNC system to achieve precise position control of the tool relative to the workpiece, thereby completing the processing of the workpiece. Specifically, the CNC system sends command signals to the servo drive system according to the pre-written processing program to control the movement of the three linear axes X, Y, and Z and the two rotary axes A and C of the machine tool, so that the tool can approach the workpiece at different angles and positions in space and perform cutting processing.
Advantages of Five-face machining center for WPC door drilling and craving
Improve processing accuracy: Since the workpiece only needs one clamping to complete the processing of multiple surfaces, the positioning error caused by multiple clamping is avoided, thereby improving the processing accuracy and surface quality, and can better ensure the dimensional accuracy and form and position tolerance of the parts.
Improve processing efficiency: Reduce the number of clamping times and adjustment time, greatly shorten the processing cycle, and improve production efficiency. At the same time, the application of automatic tool changer also further reduces the time of tool replacement, making the processing process more continuous and efficient.
Processing of complex parts: It can realize the processing of parts with complex shapes, such as parts with multiple bevels, curved surfaces, special-shaped contours, etc., meeting the needs of aerospace, automobile, mold and other industries for complex parts processing.
Reducing production costs: Although the equipment investment of the five-sided machining center is relatively high, it improves the processing accuracy and efficiency, reduces the scrap rate and processing time, thereby reducing production costs in the long-term production process and improving the economic benefits of the enterprise.
