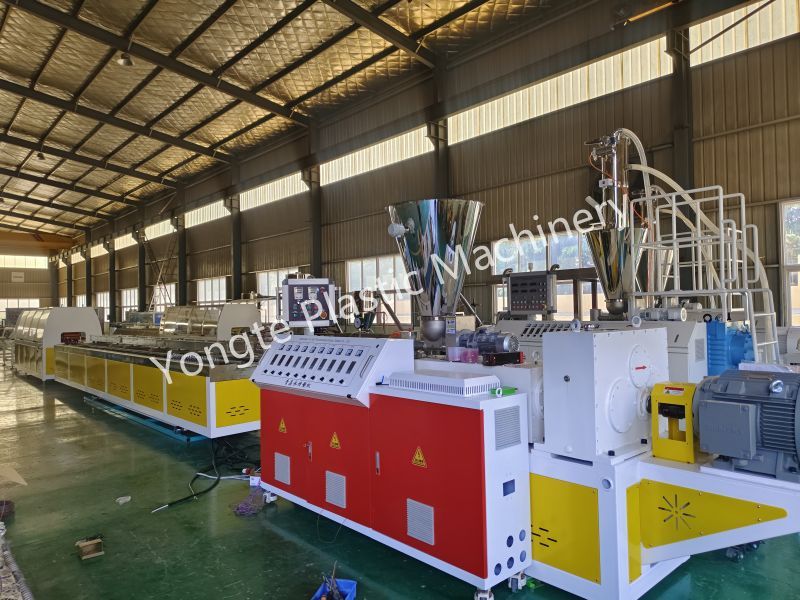

Yongte supply high quality Extrusion Machine Making WPC Door Frame, it equip with high effective extrusion system, high speed mold, fast cooling system and automatic control system. this extrusion machine can be used for making different WPC profiles by changing mold
Yongte Extrusion Machine Making WPC Door Frame has many advantages such as high efficiency, high quality, energy saving and environmental protection, easy operation, flexible adaptability, low maintenance cost, safety and reliability, continuous innovation and professional services. it is an ideal choice for WPC profile manufacturers.
| Item | Technical parameter |
| Model | YTHD 65/132 |
| Extrusion capacity | 300kg/h |
| Production speed for WPC door profile | 2-3 meter/minute |
| Installation power | 150KW |
| Main motor power | 45KW1 |
| Machine size | 30m * 2m * 3m (length*width*height) |
- It can produce products with unique and obvious surface wood grain texture, and the products are non-deformed, non-fading, fire-proof, anti-corrosive, anti-insect, aging-resistant and UV-resistant.
- It can produce a variety of different WPC door frame profiles by replacing the mold.
- It adopts imported inverter speed regulation and imported temperature control instrument, which has the advantages of wide adjustment range, high temperature control accuracy, convenient and reliable operation.
- The haul off machine is designed with reasonable structure, strong traction force and stable traction.
- The cutting machine works reliably and accurately with high cutting accuracy.

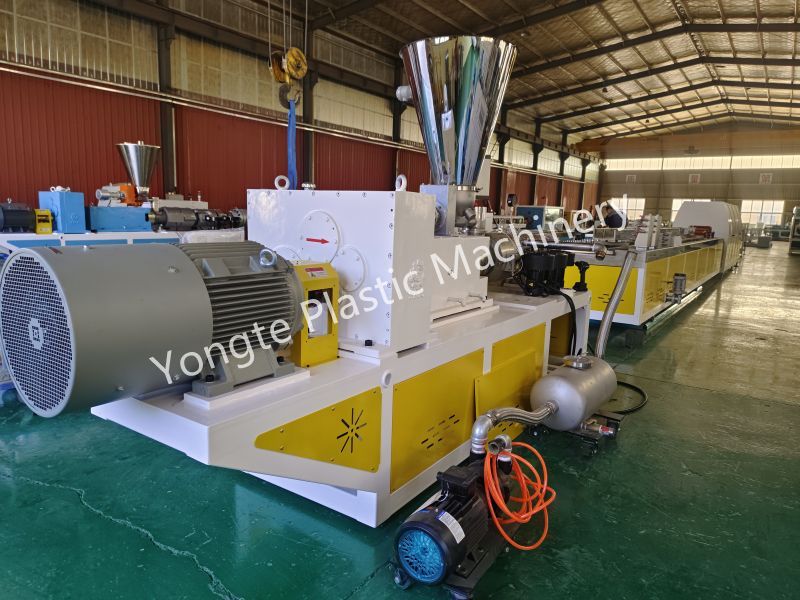

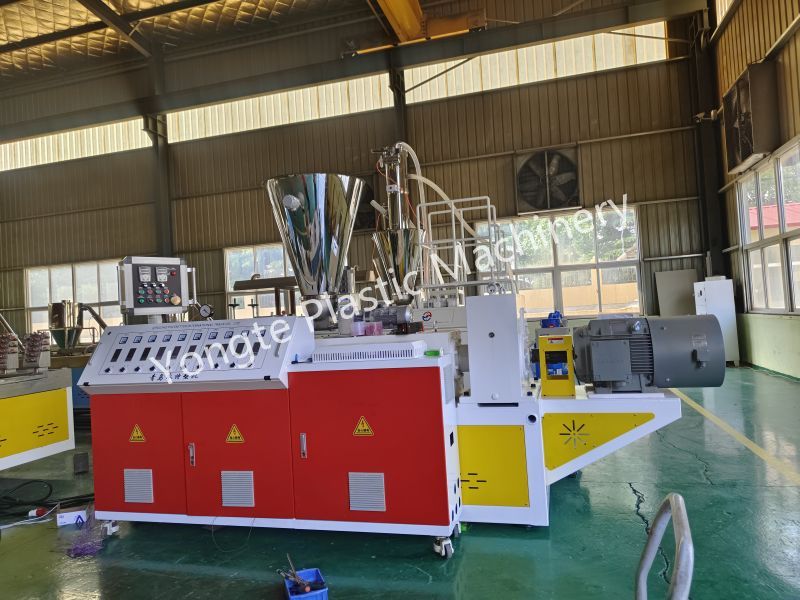

The WPC door profile high speed extruder adopts high effective conical double screw extrusion system, it equip with auto feeder, high effective driving system, high speed and high wearing screw, infrated heating system. the main motor power is 45KW equip with ABB inverter control. The extruder components adopt a unique screw design to avoid high shear and over-plasticization of the raw materials.

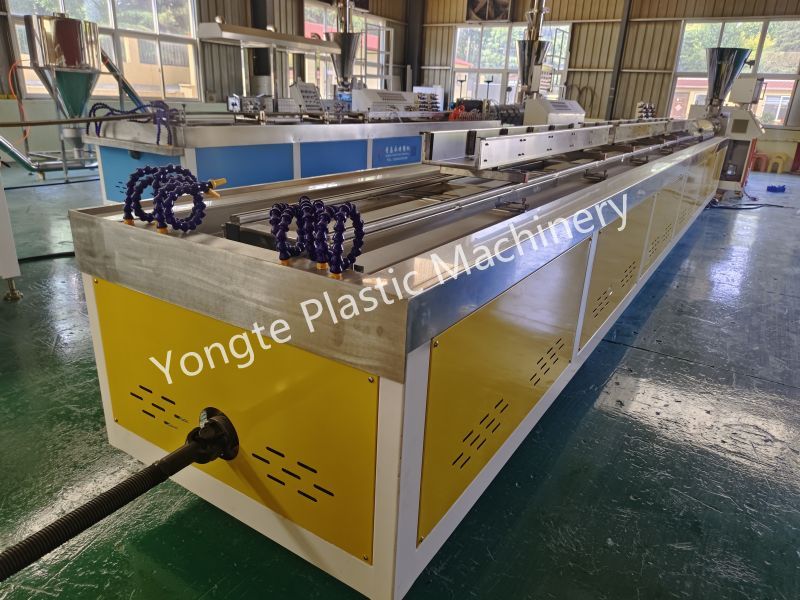

High speed cooling and calibration machine: made of stainless steel, including stainless steel frame and sound insulation film with noise reduction. The proprietary stainless steel frame as the water circulation system keeps the internal pipe system, and the unique design structure and reasonable layout can prevent the shaking during the production process and ensure the quality of the product
1, length of table: 11.8meter
2, cooling method: water and vacuum
3, vacuum pump: 7 sets, body made by 304 stainless steel
4, water pump: 1 set, all connected elbows are made by stainless steel

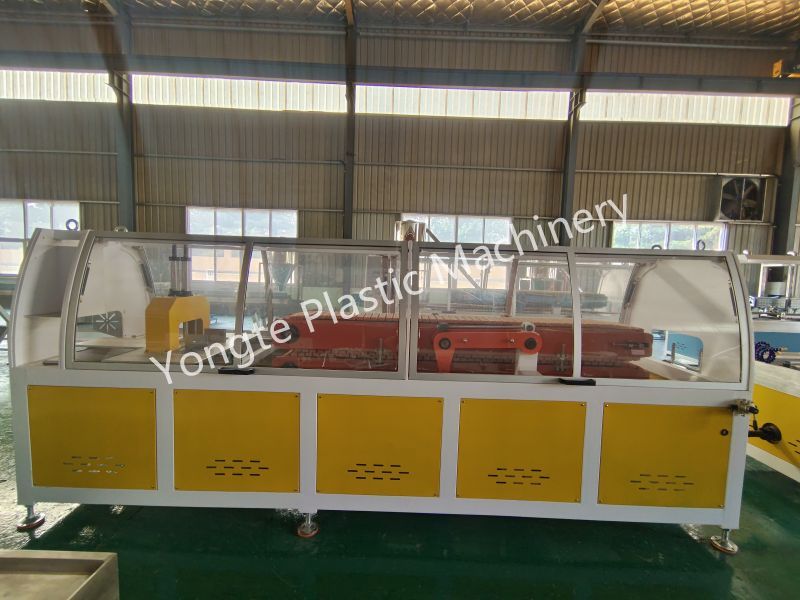

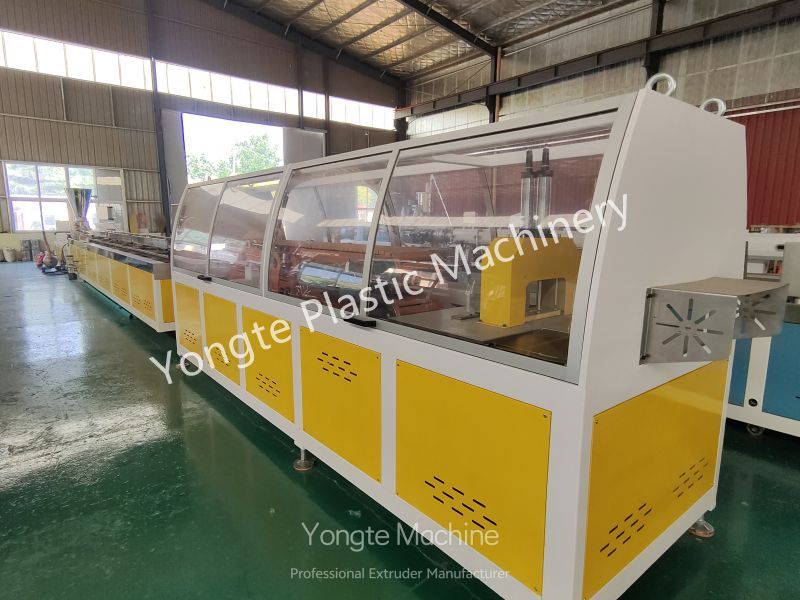

Tractor and cutter machine
It consists of two mechanical units assembled on the same robust frame and has an optional film covering device. The lower traction track is a fixed structure, and the upper traction track is mounted on a high-precision guide plate, and the appropriate pressure can be adjusted. The transmission system of the upper and lower tracks is equipped with two maintenance-free AC frequency conversion motors, which are directly connected with the reducer. Special and quickly replaceable crawler press block. Cutting saw is equipped with maintenance-free horizontal moving cutting device, profile cutting saw synchronized with traction speed, using one-way bearing and chain control, saw blade using pneumatic control; cutting length is controlled by high-precision encoder, and equipped with a high-power chip suction device
The product stacker 3000mm long; consists of a square tube frame and stainless steel flip table with signal from the cutting length counter. The flip table can be adjusted to the height of the extrusion centerline.
1. Language: English or customized
2. The main electrical control components are Siemens or Schneider products.
3. The main motor is Siemens Beide motor, 45KW, with ABB inverter control
4. The feeder speed regulating device is ABB frequency converter.
5. Omron intelligent temperature control instrument
6. Electrical control cabinet control includes: temperature control system; drive system, pull off system, cooling system.
7. Heating is controlled by a temperature controller, solid-state contactor, and high-temperature resistant wires.
1. High-efficiency production: Yongte wood-plastic door profile high-speed extrusion line adopts advanced production processes and technologies, which greatly improves production efficiency. For companies pursuing production capacity and efficiency, this is undoubtedly the biggest selling point.
2. Quality assurance: Products undergo strict quality control and multiple inspections to ensure that the quality of the wood-plastic profiles produced is stable and reliable.
3. Energy saving and environmental protection: Yongte WPC door profile high speed machine was designed with environmental protection factors in mind, effectively reducing energy consumption and pollution during the production process, and helping companies achieve green production.
4. Easy to operate: Yongte high speed WPC door profile extrusion machine is simple to operate and does not require complicated training. Employees can get started quickly, which reduces the company's training costs and time costs.
5. Flexible adaptation: The high-speed extrusion line can adapt to the production of wood-plastic profiles of different specifications, providing enterprises with more production options.
6. Low maintenance costs: Yongte WPC door profile high speed equipment structure is reasonably designed and worn parts are easy to replace, reducing the company's maintenance costs.
7. Safe and reliable: Yongte high speed WPC door profile equipment is equipped with complete safety protection measures to ensure employee safety and equipment stability during the production process.
8. Continuous innovation: We continue to carry out technological research and development and innovation to ensure that the wood-plastic profile high-speed extrusion line is always at the forefront of the industry.
9. Professional services: We provide professional pre-sales consultation, in-sales service and after-sales support to ensure that customers receive timely help and solutions during use.
